Leistungsinduktoren – SMD Hochstrom, geschirmt

Power Inductors - SMD High Current, Shielded

Spezifikationen

Konfliktmineralien- Herkunftsbericht für Power Inductors ：CMRT

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Serie	Datenblatt	Geschirmt	Größe	Induktivitätsbereich	Strombereich	MDS	Design Dateien

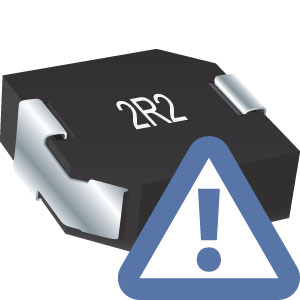

SRP1040		Yes	10.5 x 11.8 x 4.2 mm	0.15 - 15 µH	5 - 34 A	SRP1040	Downloads

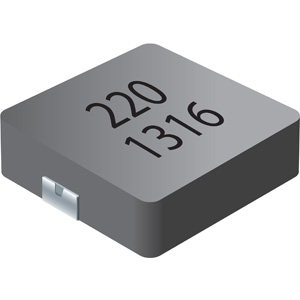

SRP1038A	SRP1038A	Yes	11 x 10 x 3.8 mm	0.2 - 47 µH	3 - 35 A	SRP1038A (R20M-R68M) SRP1038A (R75M-470M)
SRP1045		Yes	11 x 9.35 x 4.5 mm	0.36 - 3.2 µH	8 - 23 A	SRP1045	Downloads
SRP1204		Yes	12.5 x 12.5 x 4 mm	0.5 - 1.8 µH	10 - 13 A	SRP1204	Downloads

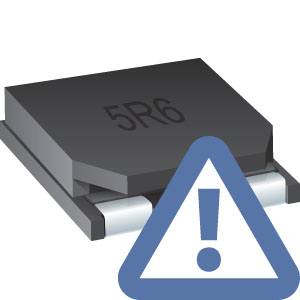

SRP1205		Yes	12.5 x 12.5 x 5.6 mm	0.3 - 7.2 µH	8.3 - 18 A	SRP1205	Downloads
SRP1206		Yes	12.5 x 12.5 x 5.7 mm	0.47 - 3.3 µH	12 - 30 A	SRP1206	Downloads

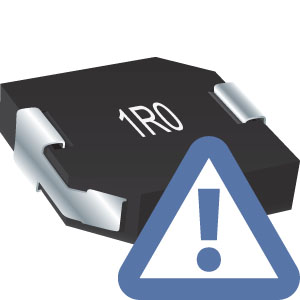

SRP1235		Yes	13.5 x 13.9 x 3.7 mm	0.1 - 10 µH	7 - 43 A	SRP1235	Downloads

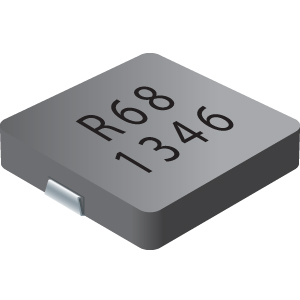

SRP1238A	SRP1238A	Yes	13.5 x 12.5 x 3.3 mm	0.1 - 10 µH	7 - 43 A	SRP1238A (R10 - R47) SRP1238A (R60 - 100)

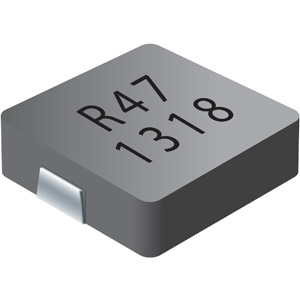

SRP1245A	SRP1245A	Yes	13.5 x 12.5 x 4.8 mm	0.2 - 22 µH	6.5 - 52 A	SRP1245A (R20 - R68) SRP1245A (R82 - 220)

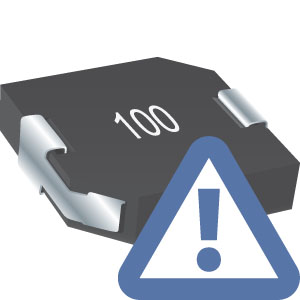

SRP1250	SRP1250	Yes	13.5 x 13.9 x 5.9 mm	0.22 - 10 µH	9 - 45 A	SRP1250

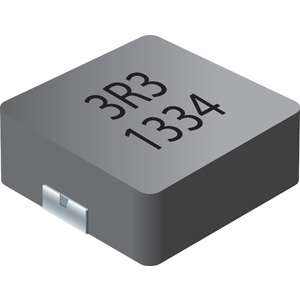

SRP1265A		Yes	13.5 x 12.5 x 6.2 mm	0.15 - 47 µH	6.5 - 55 A	SRP1265A (R15 - R56) SRP1265A (R68 - 470)	Downloads
SRP1270		Yes	13.7 x 13.7 x 7 mm	0.32 - 10 µH	10 - 46 A	SRP1270	Downloads

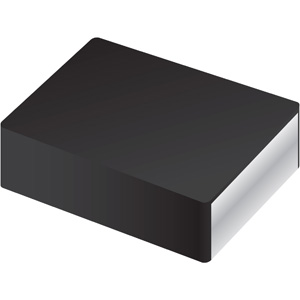

SRP2010		Yes	2 x 1.6 x 1 mm	0.24 - 2.2 µH	1.7 - 4.5 A	SRP2010	Downloads

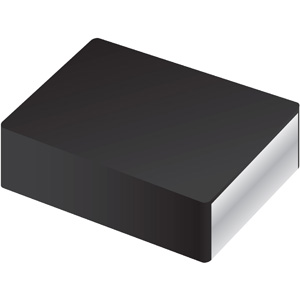

SRP2512		Yes	2.5 x 2 x 1.2 mm	0.47 - 2.2 µH	2.1 - 4.5 A	SRP2512	Downloads

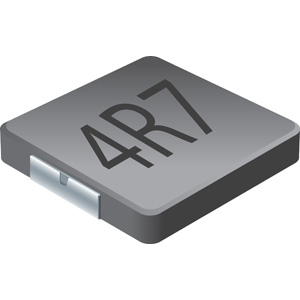

SRP4012TA		Yes	4.45 x 4 x 1 mm	0.1 - 10 µH	1.3 - 11.5 A	SRP4012TA	Downloads

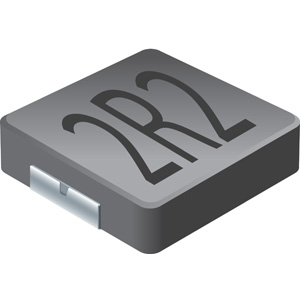

SRP4020TA		Yes	4.45 x 4 x 1.8 mm	0.1 - 22 µH	1.2 - 12 A	SRP4020TA	Downloads

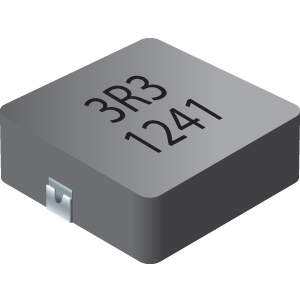

SRP5030T		Yes	5.7 x 5.2 x 2.8 mm	0.33 - 15 µH	2.1 - 14 A	SRP5030T	Downloads
SRP6540		Yes	7.2 x 6.5 x 4 mm	0.56 - 47 µH	1.6 - 18 A	SRP6540	Downloads

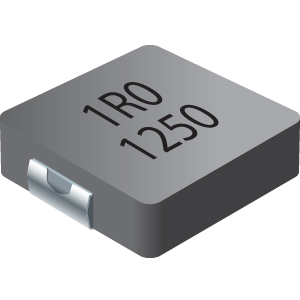

SRP7028A		Yes	7.3 x 6.6 x 2.8 mm	0.1 - 33 µH	2 - 32.5 A	SRP7028A	Downloads

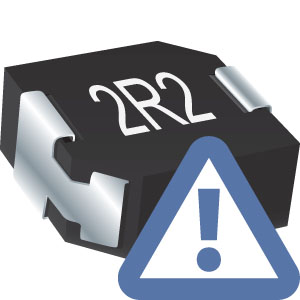

SRP7030		Yes	7 x 7.8 x 3.2 mm	0.1 - 10 µH	3 - 32.5 A	SRP7030	Downloads

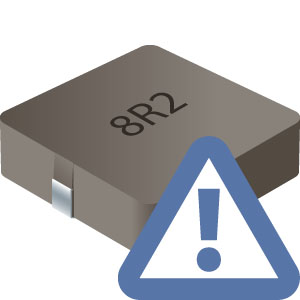

SRP7030F		Yes	7.6 x 3/3.2 mm	0.1 - 10 µH	3.5 - 32 A	SRP7030F	Downloads
SRP8040		Yes	6.1 x 8.2 x 4.2 mm	0.1 - 0.22 µH	25 - 35 A	SRP8040	Downloads
SRP1770TA	SRP1770TA	Yes	17.3 x 16.9 x 6.7 mm	1 - 100 µH	5.3 - 52 A	SRP1770TA
SRP7050TA	SRP7050TA	Yes	7.3 x 6.6 x 4.8 mm	0.33 - 68 µH	1.2 - 25 A	SRP7050TA
SRP5015TA	SRP5015TA	Yes	5.7 x 5.2 x 1.3 mm	0.15 - 22 µH	1.2 - 16 A	SRP5015TA

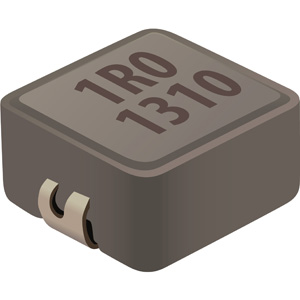

SRP5030TA	SRP5030TA	Yes	5.7 x 5.2 x 2.8 mm	0.1 - 10 µH	2.75 - 23 A	SRP5030TA
SRP2510A	SRP2510A	Yes	2.5 x 2 x 1 mm	0.22 - 4.7 µH	1.36 - 5.9 A	SRP2510A
SRP2512A	SRP2512A	Yes	2.5 x 2 x 1.2 mm	0.47 - 4.7 µH	1.55 - 4.6 A	SRP2512A
PQ2614BLA	PQ2614	Yes	28 x 28 x 16 mm	1 - 33 µH	30 A	PQ2614BLA-1R0K PQ2614BLA-xxxK
PQ2614BHA	PQ2614	Yes	28 x 28 x 16 mm	2.2 - 33 µH	30 A	PQ2614BHA-xxxK

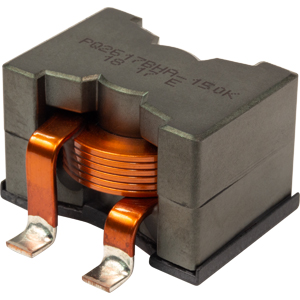

PQ2617BHA	PQ2617	Yes	28 x 28 x 19 mm	3.3 - 33 µH	28 A	PQ2617BHA-xxxK
SRP5020TA	SRP5020TA	Yes	5.7 x 5.2 x 1.8 mm	0.33 - 10 µH	2.3 - 12 A	SRP5020TA

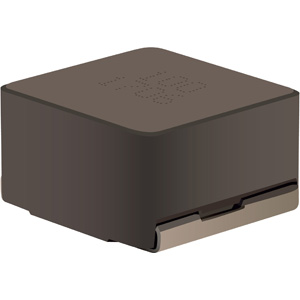

SRP2313AA	SRP2313AA	Yes	23.5 x 22 x 12.6 mm	1 - 100 µH	11 - 70 A	SRP2313AA
SRP3012TA	SRP3012TA	Yes	3.5 x 3.2 x 1 mm	0.15 - 10 µH	1 - 10 A	SRP3012TA
SRP3020TA	SRP3020TA	Yes	3.5 x 3.2 x 1.8 mm	0.1 - 10 µH	1.4 - 10.5 A	SRP3020TA
SRP4020FA	SRP4020FA	Yes	4.1 x 4.1 x 1.9 mm	0.47 - 4.7 µH	5.1 - 13.2 A	SRP4020FA
SRP4030FA	SRP4030FA	Yes	4.1 x 4.1 x 2.8 mm	0.9 - 6.8 µH	4 - 11.2 A	SRP4030FA
SRP5030CA	SRP5030CA	Yes	5.5 x 5.3 x 2.9 mm	0.15 - 4.7 µH	5.9 - 22.2 A	SRP5030CA
SRP6030CA	SRP6030CA	Yes	6.6 x 6.4 x 2.9 mm	0.18 - 4.5 µH	7 - 32 A	SRP6030CA

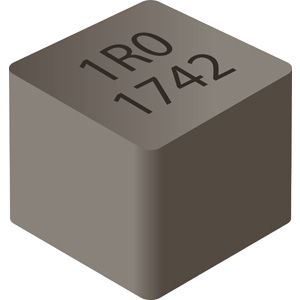

SRP6050CA	SRP6050CA	Yes	6.6 x 6.4 x 4.8 mm	1 - 4.7 µH	8.5 - 20 A	SRP6050CA
SRP6060FA	SRP6060FA	Yes	6.6 x 6.4 x 5.8 mm	2.2 -22 µH	5 - 14 A	SRP6060FA

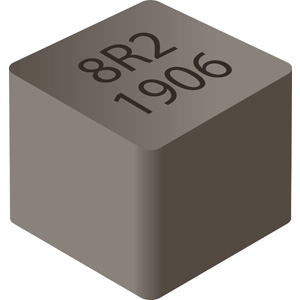

SRP5050FA	SRP5050FA	Yes	5.5 x 5.3 x 4.8 mm / 6 x 5.7 x 4.8 mm	5.6 - 22 µH	3.4 - 7.2 A	SRP5050FA

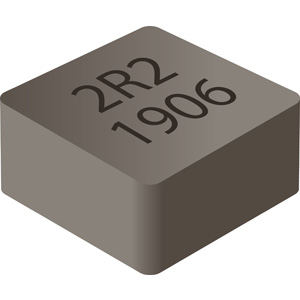

SRP7030CA	SRP7030CA	Yes	7.8 x 7.6 x 2.9 mm	1 - 8.2 µH	5.9 - 21.8 A	SRP7030CA
SRP7028C	SRP7028C	Yes	7.1 x 6.6 x 2.8 mm	0.1 - 22 µH	2.2 - 37.5 A	SRP7028C
SRP1038C	SRP1038C	Yes	11 x 10 x 3.8 mm	0.1 - 47 µH	3.2 - 53 A	SRP1038C-1R0M-470M SRP1038C-R10Y-R68M
SRP1770C	SRP1770C	Yes	17.8 x 16.9 x 6.7 mm	0.47 - 47 µH	8.7 - 60 A	SRP1770C
SRP1245C	SRP1245C	Yes	13.5 x 12.6 x 4.7 mm	0.15 - 22 µH	7.5 - 55 A	SRP1245C (R15~R68) SRP1245C (1R0-220)
SRP1265C	SRP1265C	Yes	13.5 x 12.6 x 6.2 mm	0.22 - 33 µH	8 - 55 A	SRP1265C (R22-1R5) SRP1265C (2R2-330)
SRP3012C	SRP3012C	Yes	3.5 x 3.2 x 1 mm	0.15 - 10 µH	1.1 - 10 A	SRP3012C
SRP3020C	SRP3020C	Yes	3.5 x 3.2 x 1.8 mm	0.1 - 10 µH	1.3 - 10 A	SRP3020C
SRP5020C	SRP5020C	Yes	5.7 x 5.2 x 1.8 mm	0.1 - 10 µH	2.5 - 20 A	SRP5020C
SRP5030C	SRP5030C	Yes	5.7 x 5.2 x 2.8 mm	0.1 - 10 µH	2.8 - 25 A	SRP5030C

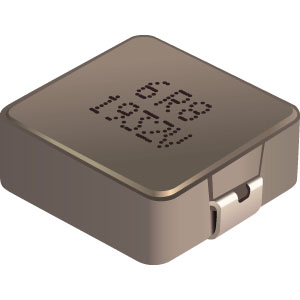

SRP1040VA	SRP1040VA	Yes	11 x 10 x 3.8 mm	1 - 68 µH	3.5 - 27 A	SRP1040VA
SRP4018FA	SRP4018FA	Yes	4.1 x 4.1 x 1.8 mm	0.33 - 1.2 µH	9.5 - 15 A	SRP4018FA

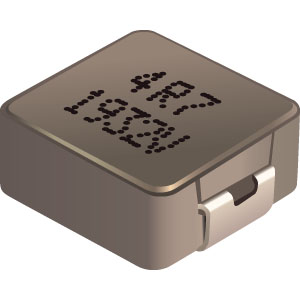

SRP6030VA	SRP6030VA	Yes	7.1 x 6.6 x 2.8 mm	0.47 - 22 µH	3.4 - 20 A	SRP6030VA
SRP0610	SRP0610	Yes	7.1 x 6.7 x 1 mm	0.47 – 10 µH	2 – 4.7 A	SRP0610
SRP0510	SRP0510	Yes	5.4 x 5.1 x 1 mm	0.47 – 10 µH	1.6 – 5 A	SRP0510
SRP0410	SRP0410	Yes	4.4 x 4.1 x 1 mm	0.47 – 10 µH	1.4 – 5.2 A	SRP0410
SRP0310	SRP0310	Yes	3.4 x 3.1 x 1 mm	0.47 – 4.7 µH	1.8 – 5.6 A	SRP0310

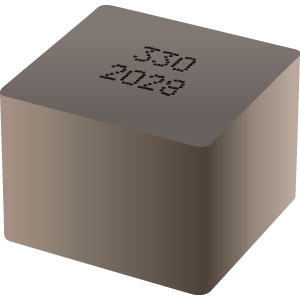

SRP1513CA	SRP1513CA	Yes	16.5 x 15.5 x 12.7 mm	4.7 - 33 µH	19 - 44 A	SRP1513CA
SRP1510CA	SRP1510CA	Yes	16.5 x 15.5 x 9.7 mm	4.7 - 33 µH	18.7 - 43 A	SRP1510CA

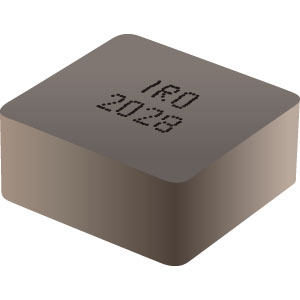

SRP1580CA	SRP1580CA	Yes	16.5 x 15.5 x 7.7 mm	1 – 5.3 µH	35 - 80 A	SRP1580CA
SRP7028AA	SRP7028AA	Yes	7.1 x 6.6 x 2.8 mm	0.15 - 22 µH	2.5 - 30 A	SRP7028AA
SRP7050AA	SRP7050AA	Yes	7.3 x 6.6 x 4.8 mm	0.47 - 47 µH	2.6 - 22 A	SRP7050AA

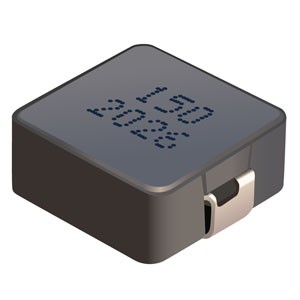

SRP1038AA	SRP1038AA	Yes	11 x 10 x 3.8 mm	0.15 - 47 µH	3.5 - 44 A	SRP1038AA (2R2 - 470) (leadframe) SRP1038AA (R15 - 1R5) (non-leadframe)

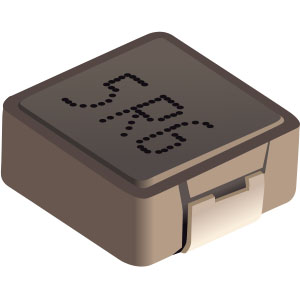

SRP6530A	SRP6530A	Yes	7.1 x 6.6 x 3 mm	0.1 - 10 µH	4 – 34 A	SRP6530A (R10) SRP6530A (R22-100)

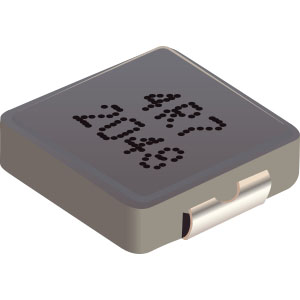

SRP7020TA	SRP7020TA	Yes	7 x 6.6 x 1.8 mm	0.1 – 10 µH	2.8 - 21 A	SRP7020TA

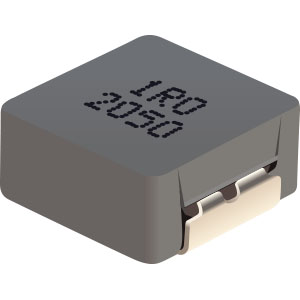

SRP8540A	SRP8540A	Yes	8.8 x 8.4 x 3.8 mm	0.22 - 22 µH	3.9 - 31 A	SRP8540A

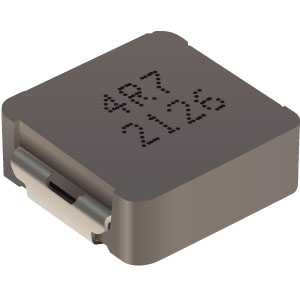

SRP1038WA	SRP1038WA	Yes	11 x 10 x 3.8 mm	0.47 – 47 µH	3.6 – 34 A	SRP1038WA

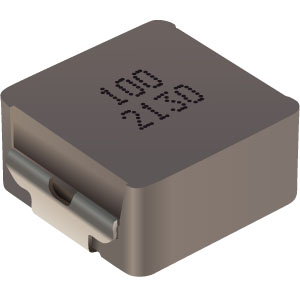

SRP1265WA	SRP1265WA	Yes	13.6 x 12.6 x 6.2 mm	0.68 – 47 uH	5.2 – 36.5 A	SRP1265WA
SRP2010DPA	SRP2010DPA	Yes	2 x 1.6 x 1 mm	0.47 - 4.7 µH	1.1 - 3.6 A	SRP2010A SRP2010DPA

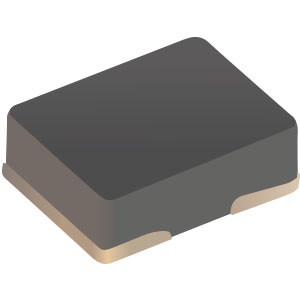

SRP3212	SRP3212	Yes	3.2 x 2.5 x 1 mm	0.33 – 4.7 µH	2.2 – 8.5 A	SRP3212

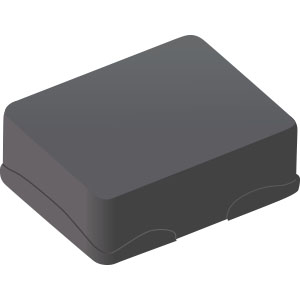

SRP2010TMA	SRP2010TMA	Yes	2 x 1.6 x 0.8 mm	0.24 - 2.2 µH	2.3 – 6.5 A	SRP2010A SRP2010TMA
SRP2012TMA	SRP2012TMA	Yes	2 x 1.6 x 1 mm	0.22 - 2.2 µH	2.5 – 7 A	SRP2012TMA
SRP2510TMA	SRP2510TMA	Yes	2.5 x 2 x 0.8 mm	0.22 - 2.2 µH	2.8 – 7.2 A	SRP2510TMA
SRP2512TMA	SRP2512TMA	Yes	2.5 x 2 x 1 mm	0.24 – 2.2 µH	3.1 – 7.3 A	SRP2512TMA
SRP3212A	SRP3212A	Yes	3.2 x 2.5 x 1 mm	0.33 – 4.7 µH	2.2 – 8.5 A	SRP3212A

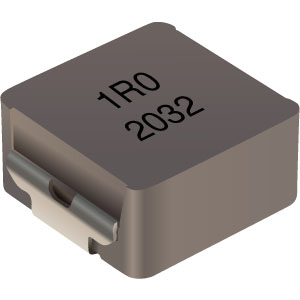

SRP1050WA	SRP1050WA	Yes	11 x 10 x 5.1 mm	1 - 100 µH	2.7 - 30 A	SRP1050WA

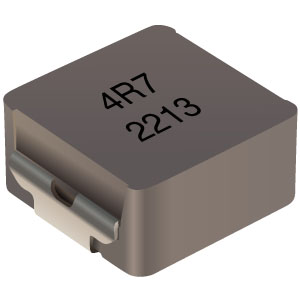

SRP5030WA	SRP5030WA	Yes	5.5 x 5.25 x 2.8 mm	0.68 - 22 µH	2.2 - 12 A	SRP5030WA

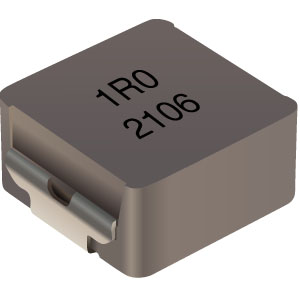

SRP6030WA	SRP6030WA	Yes	7.1 x 6.6 x 2.8 mm	0.47 - 22 µH	2.9 - 19 A	SRP6030WA
SRP7050WA	SRP7050WA	Yes	7.9 x 7.3 x 5.2 mm	1 - 100 µH	2.2 - 20 A	SRP7050WA

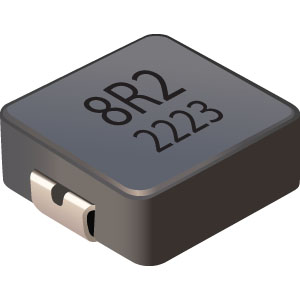

SRP7028CC	SRP7028CC	Yes	7.3 x 6.6 x 2.8 mm	0.1 - 22 µH	2.2 - 37.5 A	SRP7028CC

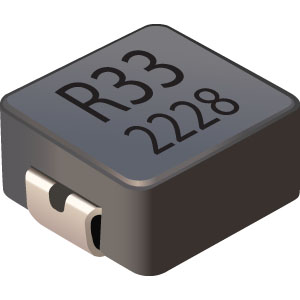

SRP5030CC	SRP5030CC	Yes	5.7 x 5.2 x 2.8 mm	0.1 - 10 µH	2.8 - 25 A	SRP5030CC
SRP5020CC	SRP5020CC	Yes	5.7 x 5.2 x 1.8 mm	0.1 - 10 µH	2.5 - 20 A	SRP5020CC

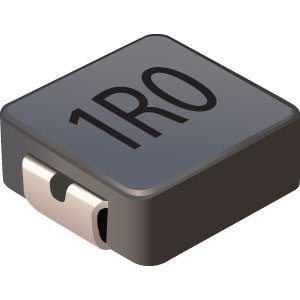

SRP4020CC	SRP4020CC	Yes	4.45 x 4.06 x 1.8 mm	0.1 - 22 µH	1.2 - 14 A	SRP4020CC

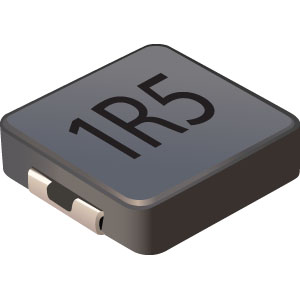

SRP4012CC	SRP4012CC	Yes	4.45 x 4.06 x 1 mm	0.1 - 22 µH	0.8 - 11.5 A	SRP4012CC

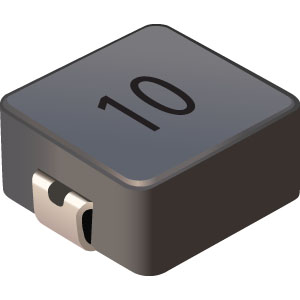

SRP3020CC	SRP3020CC	Yes	3.5 x 3.2 x 1.8 mm	0.1 - 10 µH	1.3 - 10 A	SRP3020CC

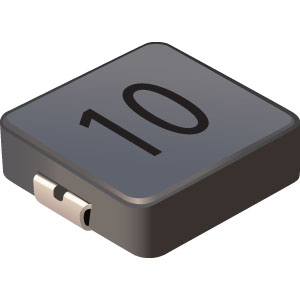

SRP3012CC	SRP3012CC	Yes	3.5 x 3.2 x 1 mm	0.15 - 10 µH	1.1 - 10 A	SRP3012CC

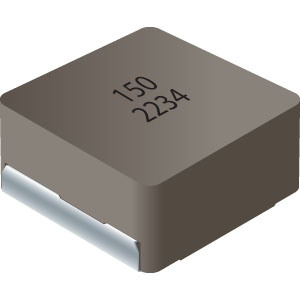

SRP2313CC	SRP2313CC	Yes	23.5 x 22 x 12.6 mm	0.68 - 150 µH	8 - 75 A	SRP2313CC

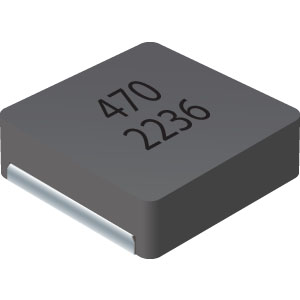

SRP1770CC	SRP1770CC	Yes	17.6 x 16.9 x 6.7 mm	0.47 - 47 µH	8.7 - 60 A	SRP1770CC

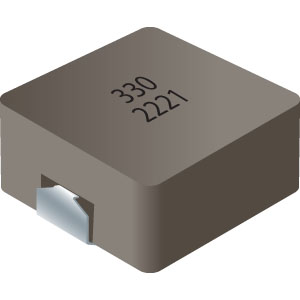

SRP1265CC	SRP1265CC	Yes	13.5 x 12.5 x 6.2 mm	0.22 - 33 µH	8 - 55 A	SRP1265CC_Leadframe SRP1265CC_NonLeadframe

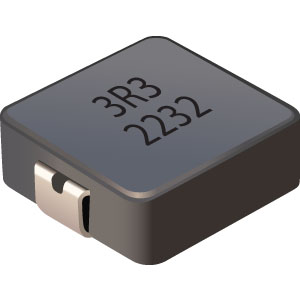

SRP1245CC	SRP1245CC	Yes	13.5 x 12.5 x 4.8 mm	0.15 - 22 µH	7.5 - 55 A	SRP1245CC_Leadframe SRP1245CC_NonLeadframe
SRP1038CC	SRP1038CC	Yes	11 x 10 x 3.8 mm	0.1 - 47 µH	3.2 - 53 A	SRP1038CC_Leadframe SRP1038CC_NonLeadframe
SRP1060VR	SRP1060VR	Yes	12.7 x 5.8 x 11.2 mm	90 - 150 nH	90 A	SRP1060VR
SRP0310F	SRP0310F	Yes	3.3 x 3.1 x 0.8 mm	0.47 - 10 µH	1.25 - 6 A	SRP0310F
SRP0312F	SRP0312F	Yes	3.3 x 3.1 x 1.0 mm	0.3 - 4.7 µH	2.2 - 8.6 A	SRP0312F
SRP0408F	SRP0408F	Yes	4.3 x 4.1 x 0.7 mm	6.8 - 10 µH	1.2 - 1.7 A	SRP0408F
SRP0410F	SRP0410F	Yes	4.3 x 4.1 x 0.8 mm	0.47 - 10 µH	1.7 - 7.5 A	SRP0410F
SRP0412F	SRP0412F	Yes	4.3 x 4.1 x 1.0 mm	0.47 - 10 µH	1.9 - 8.5 A	SRP0412F
SRP0510F	SRP0510F	Yes	5.4 x 5.1 x 0.8 mm	0.47 - 10 µH	2 - 7.7 A	SRP0510F
SRP0512F	SRP0512F	Yes	5.4 x 5.1 x 1.0 mm	0.47 - 10 µH	2.3 - 9 A	SRP0512F
SRP0610F	SRP0610F	Yes	6.1 x 6.1 x 0.8 mm	0.47 - 10 µH	2.3 - 8.2 A	SRP0610F
SRP0612F	SRP0612F	Yes	6.1 x 6.1 x 1.0 mm	0.47 - 10 µH	2.8 - 8.5 A	SRP0612F

Bourns Adds 12 New High Current Model Series to its Shielded Power Inductor Line

Übersicht Leistungsinduktoren

Oberflächenmontierte Leistungsinduktoren und Gleichtaktdrosseln von Bourns®

Leistungsinduktoren Bourns für industrielle Anwendungen

Inductance (μH)	min 0	max 120,000
Current Rating (A)	min 0.0005	max 70
Current Saturation (A)	min 0.0003	max 118
DCR (Ohms)	min 0	max 484

Height (mm)	min 0	max 54
Length (mm)	min 0	max 54
Width (mm)	min 0	max 38.1
Material Core
Shielding
Ratings

Model/Datasheet	MSL	Lötprofile	Verpackungsetikett	Anschluss	Konf.	Prüfberichte Dritter	MDB	China RoHS
SRP1038A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1038A (R20M-R68M) SRP1038A (R75M-470M)	China RoHS - SMD HCS
SRP1205		See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1205	China RoHS - SMD HCS
SRP1206		See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1206	China RoHS - SMD HCS
SRP1238A		See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1238A (R10 - R47) SRP1238A (R60 - 100)	China RoHS - SMD HCS
SRP1245A		See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1245A (R20 - R68) SRP1245A (R82 - 220)	China RoHS - SMD HCS
SRP1265A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1265A (R15 - R56) SRP1265A (R68 - 470)	China RoHS - SMD HCS
SRP2010		See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP2010	China RoHS - SMD HCS
SRP2512		See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP2512	China RoHS - SMD HCS
SRP4012TA		Std	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP4012TA	China RoHS - SMD HCS
SRP4020TA		Std	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP4020TA	China RoHS - SMD HCS
SRP5030T		See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP5030T	China RoHS - SMD HCS
SRP6540		See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP6540	China RoHS - SMD HCS
SRP7028A		See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP7028A	China RoHS - SMD HCS
SRP7030		Std	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP7030	China RoHS - SMD HCS
SRP7030F		See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP7030F	China RoHS - SMD HCS
SRP8040		See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP8040	China RoHS - SMD HCS
SRP1204	1	Std	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1204	China RoHS - SMD HCS
SRP1045	1	Std	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1045	China RoHS - SMD HCS
SRP1040	1	Std	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1040	China RoHS - SMD HCS
SRP1235	1	Std	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1235	China RoHS - SMD HCS
SRP1250	1	Std	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1250	China RoHS - SMD HCS
SRP1270	1	Std	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1270	China RoHS - SMD HCS
SRP7050TA	1			Sn (e3)	SRP	Request Report	SRP7050TA	China RoHS - SMD HCS
SRP1770TA	1			Sn (e3)	SRP	Request Report	SRP1770TA	China RoHS - SMD HCS
SRP5015TA	1			Sn (e3)	SRP	Request Report	SRP5015TA	China RoHS - SMD HCS
SRP5030TA	1			Sn (e3)	SRP	Request Report	SRP5030TA	China RoHS - SMD HCS
SRP2510A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP2510A	China RoHS - SMD HCS
SRP2512A	1	SRP2512A	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP2512A	China RoHS - SMD HCS
PQ2614BLA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	PQ Series	Request Report	PQ2614BLA-1R0K PQ2614BLA-xxxK	China RoHS - SMD HCS
PQ2614BHA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	PQ Series	Request Report	PQ2614BHA-xxxK	China RoHS - SMD HCS
PQ2617BHA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	PQ Series	Request Report	PQ2617BHA-xxxK	China RoHS - SMD HCS
SRP5020TA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP5020TA	China RoHS - SMD HCS
SRP2313AA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP2313AA	China RoHS - SMD HCS
SRP3012TA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP3012TA	China RoHS - SMD HCS
SRP3020TA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP3020TA	China RoHS - SMD HCS
SRP4020FA	1	SRP4020FA	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP4020FA	China RoHS - SMD HCS
SRP4030FA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP4030FA	China RoHS - SMD HCS
SRP5030CA	1	SRP5030CA	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP5030CA	China RoHS - SMD HCS
SRP6030CA	1	SRP6030CA	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP6030CA	China RoHS - SMD HCS
SRP6050CA	1	SRP6050CA	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP6050CA	China RoHS - SMD HCS
SRP6060FA	1	SRP6060FA	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP6060FA	China RoHS - SMD HCS
SRP7028C	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP7028C	China RoHS - SMD HCS
SRP1038C	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1038C-R10Y-R68M SRP1038C-1R0M-470M	China RoHS - SMD HCS
SRP1770C	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1770C	China RoHS - SMD HCS
SRP5050FA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP5050FA	China RoHS - SMD HCS
SRP7030CA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP7030CA	China RoHS - SMD HCS
SRP1245C	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP-C	Request Report	SRP1245C (R15~R68) SRP1245C (1R0-220)	China RoHS - SMD HCS
SRP1265C	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP-C	Request Report	SRP1265C (R22-1R5) SRP1265C (2R2-330)	China RoHS - SMD HCS
SRP3012C	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP-C	Request Report	SRP3012C	China RoHS - SMD HCS
SRP3020C	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP-C	Request Report	SRP3020C	China RoHS - SMD HCS
SRP5020C	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP-C	Request Report	SRP5020C	China RoHS - SMD HCS
SRP5030C	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP-C	Request Report	SRP5030C	China RoHS - SMD HCS
SRP1040VA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP-VA	Request Report	SRP1040VA	China RoHS - SMD HCS
SRP4018FA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP-FA	Request Report	SRP4018FA	China RoHS - SMD HCS
SRP6030VA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP-VA	Request Report	SRP6030VA	China RoHS - SMD HCS
SRP0610	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP0610	China RoHS - SMD HCS
SRP0510	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP0510	China RoHS - SMD HCS
SRP0410	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP0410	China RoHS - SMD HCS
SRP0310	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP0310	China RoHS - SMD HCS
SRP1513CA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1513CA	China RoHS - SMD HCS
SRP1510CA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1510CA	China RoHS - SMD HCS
SRP1580CA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1580CA	China RoHS - SMD HCS
SRP7028AA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP7028AA	China RoHS - SMD HCS
SRP7050AA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP7050AA	China RoHS - SMD HCS
SRP1038AA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1038AA (2R2 - 470) (leadframe) SRP1038AA (R15 - 1R5) (non-leadframe)	China RoHS - SMD HCS
SRP6530A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP6530A (R10) SRP6530A (R22-100)	China RoHS - SMD S
SRP7020TA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP7020TA	China RoHS - SMD HCS
SRP8540A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP8540A	China RoHS - SMD HCS
SRP1038WA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1038WA	China RoHS - SMD HCS
SRP1265WA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1265WA	China RoHS - SMD HCS
SRP2010DPA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP2010A SRP2010DPA	China RoHS - SMD HCS
SRP3212	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP3212	China RoHS - SMD HCS
SRP3212A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP3212A	China RoHS - SMD HCS
SRP2010TMA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP2010A SRP2010TMA	China RoHS - SMD HCS
SRP2012TMA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP2012TMA	China RoHS - SMD HCS
SRP2510TMA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP2510TMA	China RoHS - SMD HCS
SRP2512TMA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP2512TMA	China RoHS - SMD HCS
SRP1050WA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1050WA	China RoHS - SMD HCS
SRP5030WA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP5030WA	China RoHS - SMD HCS
SRP6030WA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP6030WA	China RoHS - SMD HCS
SRP7050WA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP7050WA	China RoHS - SMD HCS
SRP7028CC	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP7028CC	China RoHS - SMD HCS
SRP5030CC	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP5030CC	China RoHS - SMD HCS
SRP5020CC	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP5020CC	China RoHS - SMD HCS
SRP4020CC	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP4020CC	China RoHS - SMD HCS
SRP4012CC	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP4012CC	China RoHS - SMD HCS
SRP3020CC	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP3020CC	China RoHS - SMD HCS
SRP3012CC	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP3012CC	China RoHS - SMD HCS
SRP2313CC	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP2313CC	China RoHS - SMD HCS
SRP1770CC	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1770CC	China RoHS - SMD HCS
SRP1265CC	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1265CC_Leadframe SRP1265CC_NonLeadframe	China RoHS - SMD HCS
SRP1245CC	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1245CC_Leadframe SRP1245CC_NonLeadframe	China RoHS - SMD HCS
SRP1038CC	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1038CC_Leadframe SRP1038CC_NonLeadframe	China RoHS - SMD HCS
SRP1060VR	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP1060VR	China RoHS - SMD HCS
SRP0310F	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP0310F	China RoHS - SMD HCS
SRP0312F	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP0312F	China RoHS - SMD HCS
SRP0408F	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP0408F	China RoHS - SMD HCS
SRP0410F	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP0410F	China RoHS - SMD HCS
SRP0412F	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP0412F	China RoHS - SMD HCS
SRP0510F	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP0510F	China RoHS - SMD HCS
SRP0512F	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP0512F	China RoHS - SMD HCS
SRP0610F	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP0610F	China RoHS - SMD HCS
SRP0612F	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRP	Request Report	SRP0612F	China RoHS - SMD HCS

File	Type	Size	Uploaded on	Download
Schutz für Hochgeschwindigkeits-Kommunikationsanschlüsse	PDF	843,57 KB	28 Mai, 2015	Download

Mit einem Sternchen markierte Felder sind Pflichtfelder

Name*

Unternehmen*

Anschrift*

Stadt*

Staat*

PLZ*

Land*

Arbeitstelefon*

E-Mail-Adresse*

Teilenummer/Bezeichnung*

Anz. Muster*

Liefertermin

Jahresvolumen ca.*

Anwendung*

PrivatSchule/Schüler(in)Elektronikindustrie

Mit einem Sternchen markierte Felder sind Pflichtfelder

Vorname*

Nachname*

E-Mail-Adresse*

Phone

Unternehmen*

Anschrift*

Stadt*

Staat*

PLZ*

Land*

Art der Anfrage

Fragen oder Anmerkungen

https://www.youtube.com/embed/Nm_DJI66OI4

Bourns® Model AMS22 and AMM20 Programmer Systems

https://www.youtube.com/embed/e0LD62lj5xI

Bourns® Model AMS22 Demo

https://www.youtube.com/embed/nEB-WvEg7HA

Bourns® Model AMM20 Demo

https://www.youtube.com/embed/JfhRGnoSB3Q

Bourns® Model PWR220T

https://www.youtube.com/embed/0g-4yO34LfM

Bourns® Automotive Steering Sensors

https://www.youtube.com/embed/BS8zGqggp7U

Bourns® Pro Audio Components

https://www.youtube.com/embed/Gfielg2zKWQ

Bourns® Model 82 Vintage Premium Guitar Potentiometer

https://www.youtube.com/embed/PDyFhNtQ4us

Bourns Soldering Tips

https://www.youtube.com/embed/cZFbV1oijh4

Bourns Push-Pull Switch Guitar Application

https://www.youtube.com/embed/nRD6kc-NEtQ

Bourns Pickguard Upgrade Application

https://www.youtube.com/embed/NF-FN90Tkmk

Bourns Blend-Balance Bass Guitar Application

https://www.youtube.com/embed/HZI3tmGyOcw

Helpful Tips for Installing Guitar Potentiometers

https://www.youtube.com/embed/adTlZytoXgE

Bourns® Pro Audio Standard and Premium Guitar Potentiometers - Part 3: Grounding and Soldering

https://www.youtube.com/embed/smoO4Ytp4ec

Bourns® Pro Audio Standard and Premium Guitar Potentiometers - Part 2: Lubrication and Wear

https://www.youtube.com/embed/6uyti330_-4

Bourns® Pro Audio Standard and Premium Guitar Potentiometers - Part 1: Elements and Contacts

https://www.youtube.com/embed/x5XJVXOlL5Y

Bourns® Model 82 Guitar Potentiometer Factory Tour

https://www.youtube.com/embed/hEgygGlBDPg

Bourns® Overload Protection of Offline Flyback Converter

https://www.youtube.com/embed/UJ3rlY5K1bA

Bourns AEC-Q200 Competency

chipguard-esd-suppressors-aec-q200-compliant
chip-inductors-aec-q200-compliant
common-mode-chip-inductors-aec-q200-compliant
common-mode-chokes-aec-q200-compliant
diodes-aec-q101-compliant
fixed-resistors-aec-q200-compliant-resistors
power-inductors-aec-q200-compliant
resettable-fuses-multifuse-pptc-aec-q200-compliant
rotary-position-sensors-aec-q200-compliant
singlfuse-smd-fuses-aec-q200-compliant
tbu-high-speed-protectors-(hsps)-aec-q101-compliant
transformers-bms-aecq200
transformers-power-aec-q200-compliant
transformers-signal-aec-q200-compliant
trimpot-trimming-potentiometers-aec-q200-compliant
wirewound-chip-inductors-aec-q200-compliant
diodes-aec-q101-compliant-automotive-grade

https://www.youtube.com/embed/euXfej62BFA

Bourns® Resettable Fuses - Multifuse® PPTC

https://www.youtube.com/embed/Y37ZDjIBpKw

Bourns® AA Series Mini-Breaker (Miniature Thermal Cutoff Device)

https://www.youtube.com/embed/28CFXzOnadU

Bourns Protecting Li-Ion Batteries with Thermal Cut Off Devices

https://www.youtube.com/embed/LBNex6kh3m0

Bourns Battery Management

https://www.youtube.com/embed/W0BkHB1unD8

Bourns® FLAT® Technology Gas Discharge Tube (GDT) Surge Arrestors

https://www.youtube.com/embed/v6D39knjJ30

Bourns® RS-485 Evaluation Board Video

https://www.youtube.com/embed/teaVJbITCng

A Brief Introduction to Bourns® TBU® High Speed Protectors

https://www.youtube.com/embed/8cKyOytCv0M

Introducing Bourns® GMOV™ Components

https://www.youtube.com/embed/Eh3vfn1KAX8

Bourns® Environmental Sensors

https://www.youtube.com/embed/mbSBI5XLdB8

A Brief Introduction to RS-485 Evaluation Board 1

https://www.youtube.com/embed/nCloWgsLah4

Overtemperature Protection for USB Type-C Cables

https://www.youtube.com/embed/6GSSjDPV9So

Bourns® PQ Series Inductors

https://www.youtube.com/embed/OJD5OoJSNPs

Bourns® SM41126EL Transformer

https://www.youtube.com/embed/GbfNc3X5WpE

Bourns® Sensor Capabilities

https://www.youtube.com/embed/xEfveaks8V4

Bourns Magnetic Capabilities

transformers-htc
chip-beads
chip-inductors-common-mode
chip-inductors-aec-q200-compliant
chip-inductors-multilayer
chip-inductors-wirewound
common-mode-chip-inductors-aec-q200-compliant
common-mode-chokes
custom-magnetics
common-mode-chokes-aec-q200-compliant
custom-special-power-transformer-worksheet
custom-special-inductor-and-cmc-worksheet
j.w.-miller-through-hole-axial-lead-rf-chokes
j.w.-miller-through-hole-common-mode-chokes
j.w.-miller-through-hole-ferrite-beads-emi-filters
j.w.-miller-through-hole-high-current-chokes
j.w.-miller-through-hole-radial-lead-rf-chokes
j.w.-miller-through-hole-toroid-inductors
j-w-miller-smd-products
power-inductors-aec-q200-compliant
power-inductors-smd-dual-winding-shielded
power-inductors-smd-high-current-shielded
power-inductors-smd-non-shielded
power-inductors-smd-semi-shielded
power-inductors-smd-shielded
power-inductors-through-hole
power-magnetics-manufacturing-and-design
transformers-bms-aecq200
transformers-chip-lan
transformers-planar
transformers-power
transformers-power-aec-q200-compliant
transformers-signal
wirewound-chip-inductors-aec-q200-compliant
transformers-signal-aec-q200-compliant

https://www.youtube.com/embed/UuVEEXet3SM

Bourns® IsoMOV™ Hybrid Protector

https://www.youtube.com/embed/MwL6m0FqEKg

Bourns - Surge Suppression Component Superimposed With Live AC

https://www.youtube.com/embed/NweconkUlyA

Surging single MOV vs 2 in Parallel

https://www.youtube.com/embed/x70Wi_vgiYs

Demonstration of Universal AC Power Protection Solution on 120 Vac Line

https://www.youtube.com/embed/uud7z6JqXpo

Temporary Overvoltage Demo on IsoMOV M5-275

https://www.youtube.com/embed/wUqQ-cqc4o8

4030 Test Set

https://www.youtube.com/embed/t6VyHyNoxcY

Bourns Webinar: Magnetics Component Design Considerations for SMPS Applications (SiC and GaN)

https://www.youtube.com/embed/3U9drK0vxws

Bourns Webinar: Power & Signal Magnetics Solutions in Battery Management Systems

https://www.youtube.com/embed/P4vQ2WIBkbs

Bourns Webinar: Solutions for Low Power Conversion Drivers/Flyback Topology

https://www.youtube.com/embed/XFOz5FF48dA

Bourns Webinar: UL/IEC 62368-1 Got You Down? IsoMOV™ to the Rescue!

https://www.youtube.com/embed/hvcnul-xoQM
