光學式編碼器

技術規格

旋轉式編碼器適用於各種應用數位電流產品上的數位面板控制器，或是位置感應裝置。Bourns 這些裝置可為接觸式或光學式，並可應用於各種解決方案上。有些型號提供瞬間按鍵開關和止動裝置。

典型的應用包含溫度控制器、速度控制器、位置感應器、目錄選擇，以及音量控制。

Sensors, Panel Controls, Encoders, Precision Potentiometers, Dials 的衝突礦產資源報告：CMRT

設計包 Bourns 提供此產品線的設計包

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	資料表	封裝	封裝直徑	密封性	止動裝置	開關	轉軸	套管	端點構裝	解析度範圍	旋轉速度	觸點功率	旋轉壽命	MDS	工程文件

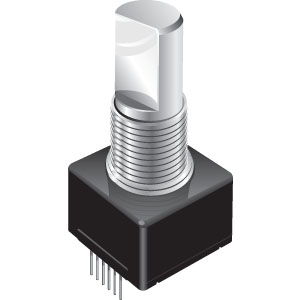

EM14		Incremental	14 mm	IP54	Yes	Yes	Metal	Metal	5-Pin Axial or Radial/Cables with/without Connector	8, 16, 32, 64	120 rpm max.	TTL, CMOS, HCMOS compatible	100,000 and 1,000,000 cycles		Downloads
EN		Optical/Incremental	21 mm x 16 mm	IP40	No	No	Metal	Metal	5-Pin Axial or Radial/Cables with/without Connector	25, 50, 64, 100, 125, 128, 200, 256	300 rpm max. (ball bearing model: 3000 rpm max.)	TTL, CMOS	10 million and 200 million shaft revolutions	EN-L	Downloads
ES14	ES14	Incremental Quadrature	14 mm	IP54	No	No	Metal	Metal	5-Pin Axial or Radial/Cables with/without Connector	8, 16, 32, 64	1000 rpm max.	TTL, CMOS, HCMOS compatible	50,000,000 cycles

旋轉開關簡表手冊(第二版)

磁性及光學編碼器-乘客用電梯系統的應用手冊

Encoders - Design Considerations

編碼器應用-訊號調整

Output

Pulses/Shaft Rev.

Detents

Shaft operating Speed

Mounitng

PART NUMBER	Output	Pulses/Shaft Rev.	Detents	Shaft operating Speed	Mounitng	Terminal Style	Body Size	Rotatinal Life	交換機	Led Color	Engineering	Buy Now

PART NUMBER

Output

Pulses/Shaft Rev.

Detents

Shaft operating Speed

Mounitng

Terminal Style

Body Size

Rotatinal Life

交換機

Led Color

Engineering

Buy Now

Model/Datasheet	濕度敏感等級 MSL	焊接圖表	封裝標籤	端子	RoHS 規範證書 CofC	第三方測試報告	物質資料表 MDS	China RoHS
EM14	See Note	See Data Sheet	Label	e3	EOP	Request Report	EM14	China RoHS2 EFUP50 - Encoders EOP
EN	See Note	See Data Sheet	Label	TBD	EOP	Request Report	EN-L	China RoHS2 EFUP50 - Encoders EOP
ES14	See Note	See Data Sheet	ES14 Label1 ES14 Label2	e3	EOP	Request Report	TBD	China RoHS2 EFUP50 - Encoders EOP

File	Type	Size	Uploaded on	Download
高速通訊端口保護	PDF	843.57 KB	28 五月, 2015	Download
