Transformers - HCT

prodline_transformers_power

Bourns designed its latest transformer series to support isolated interface power for CAN, RS-485, RS-422, RS-232, SPI, I2C, and lower-power LAN. Explore our high clearance/creepage distance isolation power transformer series. Bourns® Model HCTSM8 series high-voltage isolation push-pull transformers is AEC-Q200 compliant.

Quick link to the Sample Request: Request Sample
Series Data Sheet Photo size input Voltage Output Voltage Output Current Frequency Primary/Secondary Turns Ratio MDS Design Files Engineering Buy Now
HCTSM100304FL HCTSM100304FL hctsm100304fl_part 15.7 x 10.8 x 7.5 mm 3.3 - 5 VDC 3.3 - 15 VDC 350 mA Peak 3:4 HCTSM100304FL
Downloads Buy

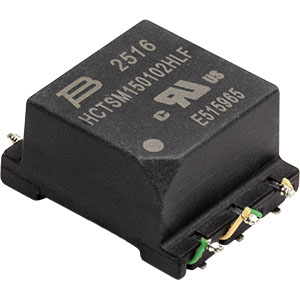

HCTSM150102HL HCTSM150102HL hctsm150102hl_part 21.3 x 15.0 x 9.6 mm 3.3 - 5 VDC 3.3 - 15 VDC 1 A Max. 1:2 HCTSM150102HL
Downloads Buy
HCTSM8 HCTSM8 HCTSM8 15.2 x 10.8 x 6.5 mm 3.3 - 5 VDC 3.3 - 15 VDC 0.35 A Peak 250 - 550 kHz Various HCTSM8
Downloads Buy
