电压瞬变抑制二极管数组

TVS Diode Arrays
概述
由于行动通讯运算与视听设备市场之小型化需求,半导体产业研发出更小型的电子组件。 目前在设计小型电子系统时面临到主机板空间不足的问题,因此加速电子组件替代封装的需求。功能整合与小型化为成功关键!

为达到小型化需求,Bourns 新一代芯片二极管因应而生,以最少成本封装提供硅二极管。镀有铜 /镍 /金接点的小 讯号二极管 0603、1005、1606 为无铅产品,而 SMA、SMB、SMC、1408、1607、2010、2419、8L NSOIC、16L NSOIC、SOT23、 SOT23-6、16L WSOIC 等封装方式则是采用 100% 锡制接点。所有 Bourns® 二极管产品皆与无铅制程兼容,符合许多工业和政府关于无 铅零组件的规范。

Bourns® 芯片二极管遵照JEDEC标准,方便您使用于自动插件设备。而平整的包装让您免除管状 封包零件的使用困扰。

Obsolete 产品标记此符号为目前可提供, 但不建议作新设计使用.

优点
Bourns 芯片二极管产品较其它同业提供了更独特的优 点,如:
  • 封装尺寸:芯片二极管 0603、1005、1206、1408、2010 为无引脚式,电路板设计 能更省空间
  • 保护环境:所有 Bourns 二极管皆符合 RoHS 规范,符合许多全球性业界及政府对无铅零组件的相关规范
  • 制造便利性 : 芯片二极管可适用于业界的标准表面黏着自动插件设备。产品平整包装更便于使用,减少了一般管状 封包在生产操作时零件滚动的问题。

Diodes 的冲突矿产资源报告 :CMRT

設計說明
RS-485 Port Protection Evaluation Board 1
RS-485 Port Protection Evaluation Board 2
Series 数据表 产品图片 封装 运作反向峰值电流 符号: VRMM / 单位: V 最小击穿电压 @ IT (mA) 符号: VBR / 单位: V 典型电容 @ 0 V 1 MHZ 符号: CT / 单位: PF RoHS 规 范 工程檔
CD143A-SR05 ~ 12 CD143A-SR05 ~ 12 sot143c_part Steering Diode Arrays 5.0 ~ 12.0 6.0 ~ 13.3 10 CD143A-SR05 ~ 12 Downloads
CD143A-SR05LC CD143A-SR05LC sot143c_part Transient Voltage Suppressor/Steering Diode Arrays 5.0 6.1 3 CD143A-SR05LC Downloads
CD143A-SR2.8 ~ 3.3 CD143A-SR2.8 ~ 3.3 sot143c_part Steering Diode Arrays 2.8 ~ 3.3 3.0 ~ 3.5 4.5 CD143A-SR2.8 ~ 3.3 Downloads
CDDFN10-0506N CDDFN10-0506N CDDFN10-3304N_part Transient Voltage Suppressor Diode Arrays 5.0 6.0 0.25 CDDFN10-0506N Downloads
CDDFN10-0516P CDDFN10-0516P CDDFN10-0516P_part Transient Voltage Suppressor Diode Arrays 2.2 (4 lines), 3.3 (2 lines), 5 (1 line) 4.5 (2/4 lines), 6 (1 line) 0.02 CDDFN10-0516P Downloads
CDDFN10-0524P CDDFN10-0524P CDDFN10-0524P_part Transient Voltage Suppressor Diode Arrays 5 6 0.5 CDDFN10-0524P Downloads
CDDFN10-2574N CDDFN10-2574N CDDFN10-2574N_part Transient Voltage Suppressor Diode Arrays 2.5 3 1.7 CDDFN10-2574N Downloads
CDDFN10-3304N CDDFN10-3304N cddfn10-3304n_nrnd_part Transient Voltage Suppressor Diode Arrays 3.3 4 4 CDDFN10-3304N Downloads
CDDFN10-3304NA CDDFN10-3304NA CDDFN10-3304N_part Transient Voltage Suppressor Diode Arrays 3.3 4 4 CDDFN10-3304NA Downloads
CDDFN10-3324P CDDFN10-3324P CDDFN10-0524P_part Transient Voltage Suppressor Diode Arrays 3.3 4.5 0.45 CDDFN10-3324P Downloads
CDDFN6-0504P CDDFN6-0504P CDDFN6-0504P_part Transient Voltage Suppressor Diode Arrays 5 6 1.6 CDDFN6-0504P Downloads
CDMSP10-0504M CDMSP10-0504M CDMSP10-0504M_part Transient Voltage Suppressor Diode Arrays 6 8 0.55 CDMSP10-0504M Downloads
CDNBS08-PLC03-6 CDNBS08-PLC03-6 cdnbS08_plc03_6_part Transient Voltage Suppressor Diode Arrays 6 6.8 8 CDNBS08-PLC03-6 Downloads
CDNBS08-SLVU2.8-4 CDNBS08-SLVU2.8-4 cdnbS08_plc03_6_part Transient Voltage Suppressor Diode Arrays 2.8 3 6 CDNBS08-SLVU2.8-4 Downloads
CDNBS08-SLVU2.8-8 CDNBS08-SLVU2.8-8 cdnbS08_plc03_6_part Transient Voltage Suppressor Diode Arrays 2.8 3 6 CDNBS08-SLVU2.8-8 Downloads

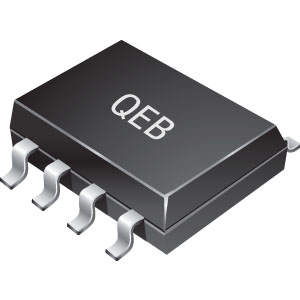

CDNBS08-SMDA05-6 Series CDNBS08-SMDA05-6 Series CDNBS08-SMDA05-6_part Transient Voltage Suppressor Diode Arrays 5 6 100 CDNBS08-SMDA05-6 Series Downloads
CDNBS08-SRDA05-4 CDNBS08-SRDA05-4 cdnbS08_plc03_6_part Transient Voltage Suppressor Diode Arrays 5 6 15 CDNBS08-SRDA05-4 Downloads
CDNBS08-SRDA12-4 CDNBS08-SRDA12-4 cdnbS08_plc03_6_part Transient Voltage Suppressor Diode Arrays 12 13.3 15 CDNBS08-SRDA12-4 Downloads
CDNBS08-SRDA15-4 CDNBS08-SRDA15-4 cdnbS08_plc03_6_part Transient Voltage Suppressor Diode Arrays 15 16.7 15 CDNBS08-SRDA15-4 Downloads
CDNBS08-SRDA3.3-4 CDNBS08-SRDA3.3-4 cdnbS08_plc03_6_part Transient Voltage Suppressor Diode Arrays 3.3 4 15 CDNBS08-SRDA3.3-4 Downloads
CDNBS08-T Series CDNBS08-T Series cdnbS08_plc03_6_part Transient Voltage Suppressor Diode Arrays 3.3 ~ 36 3.3 ~ 40 800-45 CDNBS08-T Series Downloads
CDNBS08-T58CC CDNBS08-T58CC CDNBS08-T58CC_part Transient Voltage Suppressor Diode Arrays 58 64.4 55 CDNBS08-T58CC Downloads
CDNBS16-T Series CDNBS16-T Series 2nbs16j_part Transient Voltage Suppressor Diode Arrays 3 ~ 36 4.5 ~ 40 15 CDNBS16-T Series Downloads
CDSC706-0504C CDSC706-0504C CDSC706-0504C_part Transient Voltage Suppressor Diode Arrays 5 6 1.0 CDSC706-0504C
CDSOT23-0502B CDSOT23-0502B cdsot23_t_part Transient Voltage Suppressor Diode Arrays 5.0 6.0 15 CDSOT23-0502B Downloads
CDSOT23-0502U CDSOT23-0502U cdsot23_t_part Transient Voltage Suppressor Diode Arrays 5.0 6.0 32.5 CDSOT23-0502U Downloads
CDSOT236-0502 CDSOT236-0502 CDSC706-0504C_part Transient Voltage Suppressor Diode Arrays 5.0 6.0 2.0 CDSOT236-0502 Downloads
CDSOT236-0504C CDSOT236-0504C CDSC706-0504C_part Transient Voltage Suppressor Diode Arrays 5 6 1.0 CDSOT236-0504C Downloads
CDSOT236-0504LC CDSOT236-0504LC CDSC706-0504C_part Transient Voltage Suppressor Diode Arrays 5 6 0.5 CDSOT236-0504LC Downloads
CDSOT236-TxxC Series CDSOT236-TxxC Series cdsot23_part Transient Voltage Suppressor Diode Arrays 5 ~ 36 4.0 ~ 40 70-25 CDSOT236-TxxC Series Downloads
CDSOT23-SLVU2.8 CDSOT23-SLVU2.8 cdsot23_t_part Transient Voltage Suppressor Diode Arrays 2.8 3 V @ 1 mA 2.5 CDSOT23-SLVU2.8 Downloads
CDSOT23-SM712 CDSOT23-SM712 cdsot23_t_part Transient Voltage Suppressor Diode Arrays 7/12 7.5 V @ 1 mA/13.3 V @ 1 mA 75 CDSOT23-SM712 Downloads
CDSOT23-SRV05-4 CDSOT23-SRV05-4 cdsot23_part Transient Voltage Suppressor Diode Arrays 5 6 3.5 CDSOT23-SRV05-4 Downloads
CDSOT23-T24CAN CDSOT23-T24CAN cdsot23_t_part CANbus Protector 24 26.2 22 CDSOT23-T24CAN Downloads
CDSOT23-T24CAN-Q CDSOT23-T24CAN-Q CDSOT23-T24CAN-Q_part CANbus Protector, AEC-Q 24 26.2 22 CDSOT23-T24CAN-Q Downloads
CDSOT23-TxxC Series CDSOT23-TxxC Series cdsot23_t_part Transient Voltage Suppressor Diode Arrays 3.3 ~ 36 4.0 ~ 40 500-60 CDSOT23-TxxC Series Downloads
CDSOT23-TxxC-Q Series CDSOT23-TxxC-Q Series cdsot23_txxlc_q_part Transient Voltage Suppressor Diode Arrays - AEC-Q101 Compliant 3.3 ~ 15 4 ~ 16.7 60 ~ 500 CDSOT23-TxxC-Q Series Downloads
CDSOT23-TxxLC Series CDSOT23-TxxLC Series cdsot23_t_part Transient Voltage Suppressor Diode Arrays 3.3 ~ 36 4.0 ~ 40 5 CDSOT23-TxxLC Series Downloads
CDSOT23-TxxLC-Q Series CDSOT23-TxxLC-Q Series cdsot23_txxlc_q_part Transient Voltage Suppressor Diode Arrays - AEC-Q101 Compliant 5 ~ 8 6 ~ 8.5 5 CDSOT23-TxxLC-Q Series Downloads
CDSOT353-T05 CDSOT353-T05 CDSC706-0504C_part Transient Voltage Suppressor Diode Arrays 5.0 6.0 9.0 CDSOT353-T05 Downloads
CDSOT563-0502 CDSOT563-0502 CDSC706-0504C_part Transient Voltage Suppressor Diode Arrays 5.0 6.0 2.0 CDSOT563-0502 Downloads
CD143A-SR70 Series CD143A-SR70 Series sot143c_part Steering Diode Arrays 70 85 10 CD143A-SR70 Series Downloads
CDSOT23-SR208 CDSOT23-SR208 cdsot23_part Steering Diode Arrays 20 3 CDSOT23-SR208 Downloads
CDSOT563-T05C CDSOT563-T05C cdsot23_part_nr Transient Voltage Suppressor Diode Arrays 5 6 40 CDSOT563-T05C Downloads
CDSOT23-S2004 CDSOT23-S2004 cdsot23_t_part_nr Steering Diode Arrays 240 300 3 CDSOT23-S2004 Downloads
