Diode Arrays

TVS Diode Arrays
Summary

The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components. Today, designers of compact electronic systems are faced with board space constraints, thus driving the requirement for alternative packaging technologies. Functional integration and miniaturization is the key to success!

To aid this miniaturization campaign, a new generation of Chip Diodes from Bourns has emerged that offers the capability to provide a silicon diode with minimal packaging overhead. The small signal 0603, 1005 and 1206 Chip Diodes are lead free with Cu/Ni/Au plated terminations while the other packages (SMA, SMB, SMC, 1408, 1607, 2010, 2419, 8L NSOIC, 16L NSOIC, SOT23, SOT23-6, 16L WSOIC) use 100 % Tin terminations. All Bourns® diodes are compatible with lead free manufacturing processes, conforming to many industry and government regulations on lead free components.

Bourns® Chip Diodes conform to JEDEC standards, are easy to handle on standard pick and place equipment and their flat configuration minimizes rollaway.

Obsolete Products marked with this symbol are currently available, although not recommended for new designs.

Advantages

The Chip Diode product range provides distinct advantages over some of our competitors, such as:

  • Package Size: The Chip Diodes 0603, 1005, 1206, 1408, 2010 are leadless, allowing designers to make real estate savings on PCB layouts.
  • Environmental: All Bourns® diodes are RoHS compliant and units meet many worldwide industry and government regulations on lead free components.
  • Manufacturing Friendly: Chip Diodes allow the use of industry standard pick & place equipment. The Chip Diode package makes it easy to handle and the flat configuration minimizes rollaway in production operations.

Conflict Mineral Source Reporting for Diodes: CFSI_CMRT4-01

Design Notes
RS-485 Port Protection Evaluation Board 1
RS-485 Port Protection Evaluation Board 2

Quick link to the Sample Request: Request Sample
Series Data Sheet Photo Type Working Peak Reverse Voltage
VRMM (V)
Min. Breakdown Voltage
VBR (V)
Typical
Capacitance
C (PF)
RoHS Compliant Design Files Engineering Buy Now
CD143A-SR05 ~ 12 CD143A-SR05 ~ 12 sot143c_part Steering Diode Arrays 5.0 ~ 12.0 6.0 ~ 13.3 10 CD143A-SR05 ~ 12 Downloads Buy
CD143A-SR05LC CD143A-SR05LC sot143c_part Transient Voltage Suppressor/Steering Diode Arrays 5.0 6.1 3 CD143A-SR05LC Downloads Buy
CD143A-SR2.8 ~ 3.3 CD143A-SR2.8 ~ 3.3 sot143c_part Steering Diode Arrays 2.8 ~ 3.3 3.0 ~ 3.5 4.5 CD143A-SR2.8 ~ 3.3 Downloads Buy
CDDFN10-0506N CDDFN10-0506N CDDFN10-3304N_part Transient Voltage Suppressor Diode Arrays 5.0 6.0 0.25 CDDFN10-0506N Downloads View Engineering Data
×

CDDFN10-0506N Models

cddfn10-0506N
Buy
CDDFN10-0516P CDDFN10-0516P CDDFN10-0516P_part Transient Voltage Suppressor Diode Arrays 2.2 (4 lines), 3.3 (2 lines), 5 (1 line) 4.5 (2/4 lines), 6 (1 line) 0.02 CDDFN10-0516P Downloads View Engineering Data
×

CDDFN10-0516P Models

CDDFN10-0516P
Buy
CDDFN10-0524P CDDFN10-0524P CDDFN10-0524P_part Transient Voltage Suppressor Diode Arrays 5 6 0.5 CDDFN10-0524P Downloads View Engineering Data
×

CDDFN10-0524P Models

CDDFN10-0524P
Buy
CDDFN10-2574N CDDFN10-2574N CDDFN10-2574N_part Transient Voltage Suppressor Diode Arrays 2.5 3 1.7 CDDFN10-2574N Downloads View Engineering Data
×

CDDFN10-2574N Models

CDDFN10-2574N
Buy
CDDFN10-3304N CDDFN10-3304N cddfn10-3304n_nrnd_part Transient Voltage Suppressor Diode Arrays 3.3 4 4 CDDFN10-3304N Downloads Buy
CDDFN10-3304NA CDDFN10-3304NA CDDFN10-3304N_part Transient Voltage Suppressor Diode Arrays 3.3 4 4 CDDFN10-3304NA Downloads View Engineering Data
×

CDDFN10-3304NA Models

CDDFN10-3304NA
Buy
CDDFN10-3324P CDDFN10-3324P CDDFN10-0524P_part Transient Voltage Suppressor Diode Arrays 3.3 4.5 0.45 CDDFN10-3324P Downloads View Engineering Data
×

CDDFN10-3324P Models

CDDFN10-3324P
Buy
CDDFN6-0504P CDDFN6-0504P CDDFN6-0504P_part Transient Voltage Suppressor Diode Arrays 5 6 1.6 CDDFN6-0504P Downloads Buy
CDMSP10-0504M CDMSP10-0504M CDMSP10-0504M_part Transient Voltage Suppressor Diode Arrays 6 8 0.55 CDMSP10-0504M Downloads Buy
CDNBS08-PLC03-6 CDNBS08-PLC03-6 cdnbS08_plc03_6_part Transient Voltage Suppressor Diode Arrays 6 6.8 8 CDNBS08-PLC03-6 Downloads Buy
CDNBS08-SLVU2.8-4 CDNBS08-SLVU2.8-4 cdnbS08_plc03_6_part Transient Voltage Suppressor Diode Arrays 2.8 3 6 CDNBS08-SLVU2.8-4 Downloads Buy
CDNBS08-SLVU2.8-8 CDNBS08-SLVU2.8-8 cdnbS08_plc03_6_part Transient Voltage Suppressor Diode Arrays 2.8 3 6 CDNBS08-SLVU2.8-8 Downloads Buy
CDNBS08-SMDA05-6 Series CDNBS08-SMDA05-6 Series CDNBS08-SMDA05-6_part Transient Voltage Suppressor Diode Arrays 5 6 100 CDNBS08-SMDA05-6 Series Downloads Buy
CDNBS08-SRDA05-4 CDNBS08-SRDA05-4 cdnbS08_plc03_6_part Transient Voltage Suppressor Diode Arrays 5 6 15 CDNBS08-SRDA05-4 Downloads Buy
CDNBS08-SRDA12-4 CDNBS08-SRDA12-4 cdnbS08_plc03_6_part Transient Voltage Suppressor Diode Arrays 12 13.3 15 CDNBS08-SRDA12-4 Downloads Buy
CDNBS08-SRDA15-4 CDNBS08-SRDA15-4 cdnbS08_plc03_6_part Transient Voltage Suppressor Diode Arrays 15 16.7 15 CDNBS08-SRDA15-4 Downloads Buy
CDNBS08-SRDA3.3-4 CDNBS08-SRDA3.3-4 cdnbS08_plc03_6_part Transient Voltage Suppressor Diode Arrays 3.3 4 15 CDNBS08-SRDA3.3-4 Downloads Buy
CDNBS08-T Series CDNBS08-T Series cdnbS08_plc03_6_part Transient Voltage Suppressor Diode Arrays 3.3 ~ 36 3.3 ~ 40 800-45 CDNBS08-T Series Downloads Buy
CDNBS08-T58CC CDNBS08-T58CC CDNBS08-T58CC_part Transient Voltage Suppressor Diode Arrays 58 64.4 55 CDNBS08-T58CC Downloads View Engineering Data
×

CDNBS08-T58CC Models

CDNBS08-T58CC
Buy
CDNBS16-T Series CDNBS16-T Series 2nbs16j_part Transient Voltage Suppressor Diode Arrays 3 ~ 36 4.5 ~ 40 15 CDNBS16-T Series Downloads Buy
CDSC706-0504C CDSC706-0504C CDSC706-0504C_part Transient Voltage Suppressor Diode Arrays 5 6 1.0 CDSC706-0504C View Engineering Data
×

CDSC706-0504C Models

CDSC706-0504C
Buy
CDSOT23-0502B CDSOT23-0502B cdsot23_t_part Transient Voltage Suppressor Diode Arrays 5.0 6.0 15 CDSOT23-0502B Downloads View Engineering Data
×

CDSOT23-0502B Models

CDSOT23-0502B
Buy
CDSOT23-0502U CDSOT23-0502U cdsot23_t_part Transient Voltage Suppressor Diode Arrays 5.0 6.0 32.5 CDSOT23-0502U Downloads View Engineering Data
×

CDSOT23-0502U Models

CDSOT23-0502U
Buy
CDSOT236-0502 CDSOT236-0502 CDSC706-0504C_part Transient Voltage Suppressor Diode Arrays 5.0 6.0 2.0 CDSOT236-0502 Downloads View Engineering Data
×

CDSOT236-0502 Models

CDSOT236-0502
Buy
CDSOT236-0504C CDSOT236-0504C CDSC706-0504C_part Transient Voltage Suppressor Diode Arrays 5 6 1.0 CDSOT236-0504C Downloads View Engineering Data
×

CDSOT236-0504C Models

CDSOT236-0504C
Buy
CDSOT236-0504LC CDSOT236-0504LC CDSC706-0504C_part Transient Voltage Suppressor Diode Arrays 5 6 0.5 CDSOT236-0504LC Downloads View Engineering Data
×

CDSOT236-0504LC Models

CDSOT236-0504LC
Buy
CDSOT236-TxxC Series CDSOT236-TxxC Series cdsot23_part Transient Voltage Suppressor Diode Arrays 5 ~ 36 4.0 ~ 40 70-25 CDSOT236-TxxC Series Downloads Buy
CDSOT23-SLVU2.8 CDSOT23-SLVU2.8 cdsot23_t_part Transient Voltage Suppressor Diode Arrays 2.8 3 V @ 1 mA 2.5 CDSOT23-SLVU2.8 Downloads Buy

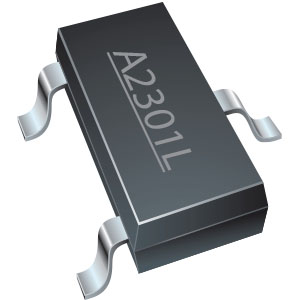

CDSOT23-SM712 CDSOT23-SM712 cdsot23_t_part Transient Voltage Suppressor Diode Arrays 7/12 7.5 V @ 1 mA/13.3 V @ 1 mA 75 CDSOT23-SM712 Downloads Buy
CDSOT23-SRV05-4 CDSOT23-SRV05-4 cdsot23_part Transient Voltage Suppressor Diode Arrays 5 6 3.5 CDSOT23-SRV05-4 Downloads Buy
CDSOT23-T24CAN CDSOT23-T24CAN cdsot23_t_part CANbus Protector 24 26.2 22 CDSOT23-T24CAN Downloads View Engineering Data
×

CDSOT23-T24CAN Models

CDSOT23-T24CAN
Buy
CDSOT23-T24CAN-Q CDSOT23-T24CAN-Q CDSOT23-T24CAN-Q_part CANbus Protector, AEC-Q 24 26.2 22 CDSOT23-T24CAN-Q Downloads View Engineering Data
×

CDSOT23-T24CAN-Q Models

CDSOT23-T24CAN-Q
Buy
CDSOT23-TxxC Series CDSOT23-TxxC Series cdsot23_t_part Transient Voltage Suppressor Diode Arrays 3.3 ~ 36 4.0 ~ 40 500-60 CDSOT23-TxxC Series Downloads Buy
CDSOT23-TxxC-Q Series CDSOT23-TxxC-Q Series cdsot23_txxlc_q_part Transient Voltage Suppressor Diode Arrays - AEC-Q101 Compliant 3.3 ~ 15 4 ~ 16.7 60 ~ 500 CDSOT23-TxxC-Q Series Downloads Buy
CDSOT23-TxxLC Series CDSOT23-TxxLC Series cdsot23_t_part Transient Voltage Suppressor Diode Arrays 3.3 ~ 36 4.0 ~ 40 5 CDSOT23-TxxLC Series Downloads Buy
CDSOT23-TxxLC-Q Series CDSOT23-TxxLC-Q Series cdsot23_txxlc_q_part Transient Voltage Suppressor Diode Arrays - AEC-Q101 Compliant 5 ~ 8 6 ~ 8.5 5 CDSOT23-TxxLC-Q Series Downloads Buy
CDSOT353-T05 CDSOT353-T05 CDSC706-0504C_part Transient Voltage Suppressor Diode Arrays 5.0 6.0 9.0 CDSOT353-T05 Downloads View Engineering Data
×

CDSOT353-T05 Models

CDSOT353-T05
Buy
CDSOT563-0502 CDSOT563-0502 CDSC706-0504C_part Transient Voltage Suppressor Diode Arrays 5.0 6.0 2.0 CDSOT563-0502 Downloads View Engineering Data
×

CDSOT563-0502 Models

CDSOT563-0502
Buy
CD143A-SR70 Series CD143A-SR70 Series sot143c_part Steering Diode Arrays 70 85 10 CD143A-SR70 Series Downloads Buy
CDSOT23-SR208 CDSOT23-SR208 cdsot23_part Steering Diode Arrays 20 3 CDSOT23-SR208 Downloads Buy
CDSOT563-T05C CDSOT563-T05C cdsot23_part_nr Transient Voltage Suppressor Diode Arrays 5 6 40 CDSOT563-T05C Downloads Buy
CDSOT23-S2004 CDSOT23-S2004 cdsot23_t_part_nr Steering Diode Arrays 240 300 3 CDSOT23-S2004 Downloads Buy
