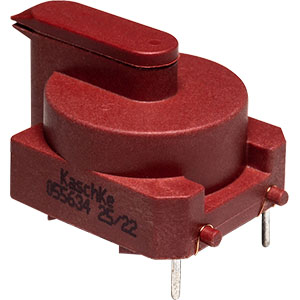

Current Sense Transformers

prodline_transformers_power
Specifications
Product Series
Parametric Table
RoHS Files
Collateral
Videos
Request Samples
Contact Us
Series Data Sheet Photo Prim./Sec.
Turns Ratio
Current Rating Inductance Volt-time Product
on Secondary (Max.)
Secondary DC
Resistance (Ohms)
MDS Engineering Buy Now
055650 055650 50:1 0.1 - 40 A 6 mH 180 V-Āµs 0.140 055650
Buy
055651 055651 100:1 0.1 - 40 A 24 mH 360 V-Āµs 0.47 055651
Buy
055652 055652 200:1 0.1 - 40 A 96 mH 715 V-Āµs 1.8 055652
Buy
055653 055653 300:1 0.1 - 40 A 216 mH 1070 V-Āµs 3.4 055653
Buy
055654 055654 400:1 0.1 - 40 A 384 mH 1430 V-Āµs 5.7 055654
Buy
055655 055655 500:1 0.1 - 40 A 600 mH 1785 V-Āµs 9.4 055655
Buy
055656 055656 600:1 0.1 - 40 A 864 mH 2140 V-Āµs 13.5 055656
Buy
055657 055657 1000:1 0.1 - 40 A 2400 mH 3570 V-Āµs 35 055657
Buy
055658 055658 1000:1 0.1 - 40 A 30 H 6.4 V-ms 25 055658
Buy
055659 055659 1500:1 0.1 - 40 A 67.5 H 9.5 V-ms 52 055659
Buy
055660 055660 2000:1 0.1 - 40 A 120 H 12.7 V-ms 100 055660
Buy
055661 055661 2500:1 0.1 - 40 A 187.5 H 15.9 V-ms 135 055661
Buy
055662 055662 50:1 0.1 - 40 A 0.77 mH 180 V-Āµs 0.140 055662
Buy
055663 055663 100:1 0.1 - 40 A 3.1 mH 360 V-Āµs 0.47 055663
Buy
055664 055664 200:1 0.1 - 40 A 12.4 mH 715 V-Āµs 1.8 055664
Buy
