Thick Film on Steel

Specifications

Bourns has a well-established history of adapting its advanced thick film printing technology to its component products. The Company continues to develop and process thick film inks that are used in cutting-edge products. For example, thick film printing technology is integral to the manufacturing of Bourns® Trimpot® trimming potentiometers. These products have a trusted reputation for providing exceptional reliability and performance. Now, Bourns is applying the versatility of thick film printing and extending its use on stainless steel substrates which allows higher power for more demanding application requirements.

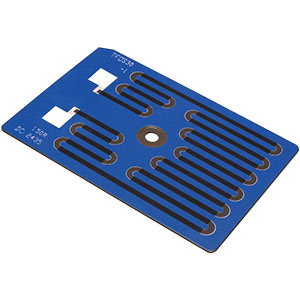

Bourns engineered its TFOS or Thick Film on Stainless Steel technology to be used on products for demanding applications such as precharge or discharge applications in battery energy storage systems, industrial power supplies, inverters, motor drives, heaters, and any application where higher power is needed. These low-profile components offer high pulse withstanding capabilities that can easily be attached to heat sinks.

Advantages

Low profile
The flat design makes TFOS ideal for space-constrained applications
High power rating
TFOS offers excellent thermal transfer
TFOS enables high power densities for both surge handling and continuous operation
RoHS compliant*
Lead free
AEC-Q200 compliant
