RF Inductors

Quick links to product tables:

SMD Air Core Inductors
SMD Chip Inductors - Wirewound
TH Axial and Radial RF Chokes

Surface Mount (SMD) RF Inductors

SMD Air Core Inductors

Series	Data Sheet	Photo	Size	Inductance Range	Current Range	MDS	Design Files	Engineering	Buy Now
AC1060R			10.55 x 6.35 x 5.9 mm	90 - 538 nH	2 - 3.5 A	AC1060R	Downloads		Buy
AC2213R			2.21 x 1.42 x 1.37 mm	1.65 - 5.45 nH	1.6 A	AC2213R	Downloads		Buy

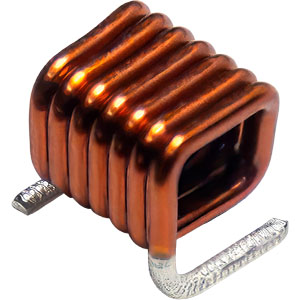

AC3028SQ			2.67 ~ 3.3 x 2.67 x 2.79 mm	27 – 47 nH	4.4 – 5.5 A	AC3028SQ-27N AC3028SQ-30N AC3028SQ-33N AC3028SQ-36N AC3028SQ-39N AC3028SQ-43N AC3028SQ-47N	Downloads		Buy
AC3630R			3.68 x 3.05 x 3.18 mm	2.5 - 18.5 nH	4 A	AC3630R	Downloads		Buy
AC4013R			4.04 x 1.42 x 1.37 mm	5.6 - 12.55 nH	1.6 A	AC4013R	Downloads		Buy
AC4842R			4.83 x 3.81 x 4.2 mm	22 - 120 nH	1.5 - 3.5 A	AC4842R	Downloads		Buy

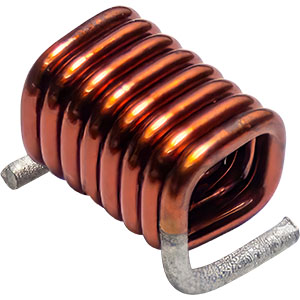

AC5037SQ			4.06 ~ 5.84 x 3.56 x 3.73 mm	47 – 82 nH	4.9 – 5.6 A	AC5037SQ-47N AC5037SQ-68N AC5037SQ-82N	Downloads		Buy
AC6830R			6.86 x 3.05 x 3.18 mm	17.5 - 43 nH	4 A	AC6830R	Downloads		Buy

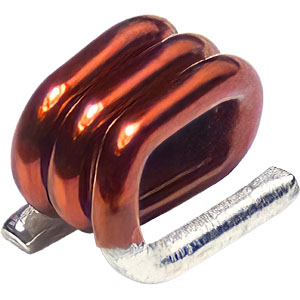

ACxx14SQ			1.30 ~ 2.59 x 1.83 x 1.40 mm	5.5 – 19.4 nH	2.9 A	AC1614SQ-5N5 AC1614SQ-6N0 AC1614SQ-8N9 AC2014SQ-15N AC2014SQ-12N AC2014SQ-19N	Downloads		Buy

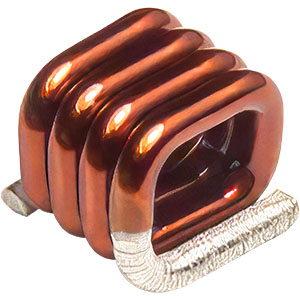

ACxx15SQ			1.30 ~ 2.59 x 1.83 x 1.52 mm	6.9 – 22 nH	2.7 A	AC1615SQ-6N9 AC1615SQ-10N AC1615SQ-11N AC2015SQ-13N AC2015SQ-17N AC2015SQ-22N	Downloads		Buy
ACxx18SQ			1.47 ~ 2.97 x 2.13 x 1.83 mm	8.1 - 33 nH	4.4 A	AC1618SQ-8N1 AC1618SQ-12N AC1618SQ-14N AC2218SQ-16N AC2218SQ-21N AC2218SQ-23N AC3018SQ-25N AC3018SQ-27N AC3018SQ-33N	Downloads		Buy

SMD Chip Inductors: Wirewound

Series	Data Sheet	Photo	Size	Inductance Range	Current Range	MDS	Design Files	Engineering	Buy Now
CC322522A			3.2 x 2.5 x 2.2 mm	1 - 100 µH	0.15 - 1.35 A	CC322522A	Downloads		Buy
CC453232 (1812)			4.2 x 3.2 x 4.5 mm	1 - 680 µH	65 - 1050 mA	CC453232	Downloads		Buy
CC453232A			4.2 x 3.2 x 3.2 mm	1 - 1000 µH	0.09 - 2.3 A	CC453232A	Downloads		Buy
CM322522 (1210)			3.2 x 2.5 x 2.2 mm	0.12 – 150 µH	45 - 450 mA	CM322522	Downloads		Buy
CM453232 (1812)			4.5 x 3.2 x 3.2 mm	0.1 - 1000 µH	30 - 800 mA	CM453232 CM453232 (1R0-101) CM453232 (151-102) CM453232 (121)	Downloads		Buy
CW100505 (0402)			1 x 0.55 x 0.5 mm	0.01 - 0.12 µH	100 - 1360 mA	CW100505 (0402)	Downloads		Buy
CW105550A (0402)			1 x 0.55 x 0.5 mm	1 - 120 nH	110 - 1360 mA	CW105550A	Downloads		Buy
CW160808 (0603)			1.6 x 1 x 1 mm	0.0018 - 0.27 µH	170 - 700 mA	CW160808 (0603)	Downloads		Buy
CW161009A (0603)			1.65 x 1.15 x 0.9 mm	1.6 - 390 nH	130 - 700 mA	CW161009A	Downloads		Buy
CW201212 (0805)			2 x 1.5 x 1.3 mm	0.0022 - 0.91 µH	180 - 600 mA	CW201212 (2N2~R39)	Downloads		Buy
CW2012A			2.4 x 1.6 x 1.4 mm	2 - 1000 nH	170 - 800 mA	CW2012A	Downloads		Buy
CW252016 (1008)			2.5 x 2 x 1.6 mm	0.01 - 4.7 µH	260 - 1000 mA	CW252016 (1008)	Downloads		Buy
CWF1610			1.6 x 1 x 1 mm	1 - 22 µH	200 - 700 mA	CWF1610	Downloads		Buy
CWF1610A			1.6 x 1.0 x 1.0 mm	0.1 – 22 µH	200 – 1400 mA	CWF1610A	Downloads		Buy
CWF1612A			1.65 x 1.15 x 1.05 mm	0.047 – 10 µH	270 – 1500 mA	CWF1612A	Downloads		Buy
CWF2012A			2.4 x 1.6 x 1.4 mm	0.47 – 33 µH	145 – 750 mA	CWF2012A	Downloads		Buy
CWF2414			2.2 x 1.4 x 1.3 mm	1 - 22 µH	340 - 1300 mA	CWF2414	Downloads		Buy
CWP3230A			3.2 x 2.5 x 3 mm	2.2 - 47 µH	500 - 1900 mA	CWP3230A (2R2M) CWP3230A (6R8M, 100M, 220M) CWP3230A (470M)	Downloads		Buy

J.W. Miller® SMD Chip Inductors

Product		MDS
PM0603
PM0805
PM1008
PM1210
PM1812

Through-Hole (TH) RF Inductors

TH Axial and Radial RF Chokes

Series	Data Sheet	Photo	Size	Inductance Range	Current Range	MDS	Design Files	Engineering	Buy Now
4600			7 mm Dia 53 mm Lg	1 - 10 µH			Downloads		Buy
5300			4 Dia x 12.7 Lg	1 - 10000 µH	0.05 - 3.3 A		Downloads		Buy
6000			9 Dia x 12.2 Ht	1 - 47000 µH	0.08 - 10 A	6000 (1R0-103) 6000 (123-473)	Downloads		Buy
6100			11 Dia x 10.5 Ht	10 - 18000 µH	0.16 - 6.3 A		Downloads		Buy
70F			10 mm Dia x 48 mm Lg	50000 - 100000 µH		70F	Downloads		Buy
77F			4 Dia x 10.4 Lg	1 - 1000 µH	0.1 - 0.9 A	77F	Downloads		Buy
78F			2.8 Dia x 7.1 Lg	0.033 - 1000 µH	0.04 - 0.5 A	78F (R10-820)	Downloads		Buy
8230			3 Dia x 7.6 Lg	0.1 - 1000 µH	0.04 - 1.1 A	8230	Downloads		Buy
8250			4.2 Dia x 11.4 Lg	0.1 - 100000 µH	0.02 - 3 A	8250	Downloads		Buy
9230			2.4 Dia x 6.4 Lg	0.1 - 1000 µH	0.04 - 1.1 A	9230	Downloads		Buy
9250A			4.2 Dia x 10.4 Lg	0.1 - 8200 µH	0.26 - 1.8 A	9250A	Downloads		Buy
RL110			10 Dia x 10 Ht	10 - 1000 µH	0.53 - 5.3 A	RL110	Downloads		Buy
RL181S			10.5 Dia x 14 Ht	1000 - 12000 µH	0.01 - 0.09 A	RL181S RL181S-124J-RC RL181S-124H-RC	Downloads		Buy
RL622			11 Dia x 8.5 Ht	1 - 100000 µH	0.2 - 10 A	RL622	Downloads		Buy
RL822			11 Dia x 8.5 Ht	1 - 1000 µH	0.16 - 3.7 A	RL822	Downloads		Buy
RL824			10.5 Dia x 15.5 Ht	10 - 3900 µH	0.18 - 2.2 A	RL824	Downloads		Buy
RL895			7.8 Dia x 9.5 Ht	10 - 47000 µH	0.04 - 2.6 A	RL895	Downloads		Buy
RLB9012				0.001 - 47 mH	0.08 - 10 A	RLB9012	Downloads		Buy
