Transformers - Power

Specifications

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	Size	Input Voltage	Output Voltage	Output Current	Frequency	Primary/Secondary Turns Ratio	MDS	Design Files	Buy Now
PCS020	8 x 8.13 x 5.3 mm	500 V_rms	Various	20 A	10 kHz - 1 MHz	Various	PCS	Downloads	Buy
PCS040	14.55 x 19.91 x 10.5 mm	800 V_rms	Various	40 A	10 kHz - 1 MHz	Various	PCS	Downloads	Buy
PDC010-FD15A03S	18 x 21.3 x 9 mm	10 V	3.3 V	3 A	500 kHz	6.5/1	TBD	Downloads	Buy
PDC015-FD15A05S	18 x 21.3 x 9 mm	37-57 V	5 V	3 A	250 kHz	5.4/1	TBD	Downloads	Buy
PDC020-FD15A12S	18 x 21.3 x 9 mm	36-57 V	12 V	1.7 A	250 kHz	4/1	TBD	Downloads	Buy
PDC025-FD20A05S	22 x 29.5 x 11.5 mm	36-57 V	5 V	5 A	250 kHz	5.5/1	TBD	Downloads	Buy
PDC025-FD20A12S	22 x 29.5 x 11.5 mm	33-57 V	12 V	2.08 A	250 kHz	4/1	TBD	Downloads	Buy
PDC060-FD20A12S	21 x 29.5 x 12.5 mm	36-72 V	12 V	5 A	200 kHz	2.67/1	TBD	Downloads	Buy
PDC023-EP13A05S	13.3 x 17.5 x 13 mm	40-57 V	5 V	4.6 A	250 kHz	4.5/1	TBD	Downloads	Buy
PDC030-EP13A12S	13.3 x 17.5 x 13 mm	33-57 V	12 V	2.5 A	250 kHz	2/1	TBD	Downloads	Buy
PDC003-EF13A04T	13.5 x 20 x 10 mm	85-265 V	4.3 V	0.6 A	250 kHz	9/1	TBD	Downloads	Buy
PDC030-RM08A53T	23 x 26.8 x 17.5 mm	85-265 V	53 V	0.57 A	100 kHZ	7.16/1	TBD	Downloads	Buy
BA60951CS	16.9 x 10.5 x 5.97 mm	7 - 24 VDC	15 VDC	0.15 A	120 kHz	1 : 0.77	BA60951CS	Downloads	Buy
BS64042CS	9.8 x 10.5 x 11 mm	4.5 - 60 V	6 - 28 V	25 mA	100 kHz	1 : 1	BS64042CS	Downloads	Buy

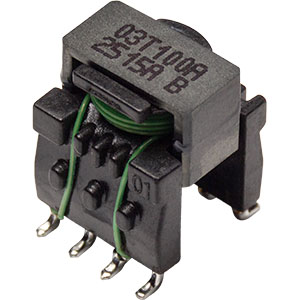

HVMA03F40C-ST10S	10.3 x 9.5 x 12.2 mm	6-27 VDC	14 VDC	0.2 A	12 kHz - 400 kHz	1 : 1	HVMA03F40C-ST10S	Downloads	Buy
HVMA03F4A-LP8S	12.8 x 10 x 7.0 mm	10-24 VDC	15 VDC	0.1 A	400 kHz	Np:Ns1 5:4 Np:Ns2 5:1	HVMA03F4A-LP8S	Downloads	Buy
PAD00x-T764	9.85 x 6.55 x 4 mm	3.3 - 5 VDC	3.3 - 15 VDC	0.35 A Peak	250 - 550 kHz	Various	PAD002-T764111S PAD002-T764113S PAD001-T764117S PAD001-T764120S	Downloads	Buy
PFB	13.9 x 14 x 13.5 mm 14.5 x 24.7 x 12.7 mm	15 V	15 V	0.3 A	100 - 500 kHz	1 : 1 Center tap on secondary side	PFBR45-SP PFBR45-ST	Downloads	Buy
POE012-EP13033S	14 x 15.1 x 14 mm	36 - 57 VDC	3.3 / 10 VDC	3.3 / 0.01 A	250 kHz	9 : 1 / 4.5 : 1	POE012-EP13033S	Downloads	Buy
POE012-PD13050S	14 x 16.2 x 14.5 mm	36 - 57 VDC	5 VDC	2.4 A	250 kHz	6 : 1	POE012-PD13050S	Downloads	Buy
POE012-PD13120S	14 x 16.2 x 14.5 mm	36 - 72 VDC	12 VDC	1.08 A	250 kHz	2 : 1	POE012-PD13120S	Downloads	Buy
POE025-EP13050S	14 x 15.1 x 14 mm	33 - 57 VDC	5 VDC	5 A	250 kHz	4 : 1	POE025-EP13050S	Downloads	Buy
POE025-FD20050S	28.6 x 21.1 x 12 mm	40 - 57 VDC	3.3 / 5 / 10.5 VDC	2.5 / 3.8 / 0.06 A	250 kHz	10 : 1 / 6.67 : 1 / 3.33 : 1	POE025-FD20050S	Downloads	Buy
POE025-PD13050S	14 x 16.2 x 14.5 mm	36 - 57 VDC	5 VDC	5 A	250 kHz	6 : 1	POE025-PD13050S	Downloads	Buy
POE025-PD13120S	14 x 16.2 x 14.5 mm	36 - 57 VDC	12 VDC	2.1 A	220 kHz	2.375 : 1	POE025-PD13120S	Downloads	Buy
POE028-FD20050S	28.6 x 21.1 x 12 mm	36 - 57 VDC	5 VDC	5 A	250 kHz	5.5 : 1	POE028-FD20050S	Downloads	Buy
POE030-PD13050S	14 x 16.2 x 14.5 mm	33 - 57 VDC	5 VDC	6 A	200 kHz	3.14 : 1	POE030-PD13050S	Downloads	Buy
POE050-FD25120S	33 x 26 x 14.5 mm	42.5 - 57 VDC	12 VDC	4.2 A	250 kHz	4.5 : 1	POE050-FD25120S	Downloads	Buy
POE060-FD20120S	28.6 x 21.1 x 12 mm	36 - 72 VDC	12 VDC	5 A	250 kHz	1.71 : 1	POE060-FD20120S	Downloads	Buy
POE070-PD13050S	14 x 16.2 x 14.5 mm	41 - 57 VDC	5 / 5 VDC	7 / 7 A	250 kHz	3.33 : 1 / 3.33 : 1	POE070-PD13050S	Downloads	Buy
POE072-PD13120S	14 x 16.2 x 14.5 mm	41 - 57 VDC	12 / 12 VDC	3 / 3 A	250 kHz	1.5 : 1 / 1.5 : 1	POE072-PD13120S	Downloads	Buy
SM13117EL	17.8 x 13.5 x 12.7 mm	36 - 72 VDC	12 VDC	1.08 A	250 kHz	1 : 0.5 : 0.5 : 0.5	TBD	Downloads	Buy
SM91047EL	17.8 x 13.5 x 12.7 mm	100 - 375 VDC	5 VDC	0.4 A	50kHz	1 : 11.875	SM91047EL	Downloads	Buy

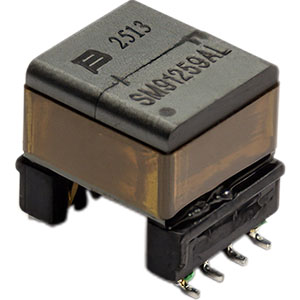

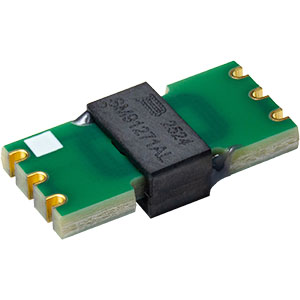

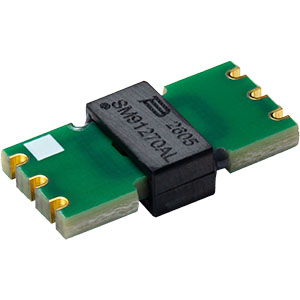

SM91207L	13.2 x 11.8 x 11.6 mm	24 V	15 V	500 mA	410 kHz	1.364	SM91207L	Downloads	Buy
SM91208L	13.2 x 11.8 x 11.6 mm	12 V	15 V	500 mA	410 kHz	0.8	SM91208L	Downloads	Buy
SM91243L	17.4 x 10.6 x 8.1 mm	10.5-13.2 V	10.5 - 13.2 V	200 mA	500 kHz	01:01	SM91243L	Downloads	Buy

Model/Datasheet	MSL	Soldering Profiles	Packaging Label	Terminal	CofC	3rd Party Test Reports	MDS	China RoHS
BA60951CS	1	See Data Sheet	TBD	TBD	BA60951CS CofC	Request Report	BA60951CS	China RoHS - Power
BS64042CS	1	See Data Sheet	TBD	e3	BS64042CS CofC	Request Report	BS64042CS	China RoHS - BS64042CS
HVMA03F40C-ST10S	1	See Data Sheet	TBD	TBD	HVMA03F40C-ST10S CofC	Request Report	HVMA03F40C-ST10S	China RoHS - Power
HVMA03F4A-LP8S	1	See Data Sheet	TBD	TBD	HVMA CofC	Request Report	HVMA03F4A-LP8S	China RoHS - Power
PAD00x-T764	1	See Data Sheet	TBD	TBD	PAD CofC	Request Report	PAD002-T764111S PAD002-T764113S PAD001-T764117S PAD001-T764120S	China RoHS - Power
PCS020	1	See Data Sheet	TBD	TBD	CofC_PCS	Request Report	PCS	China RoHS - Power
PCS040	1	See Data Sheet	TBD	TBD	CofC_PCS	Request Report	PCS	China RoHS - Power
PFB	1	See Data Sheet	TBD	TBD	PFB_cofc	Request Report	PFBR45-SP PFBR45-ST	China RoHS - Power
POE-EP	1	See Data Sheet	TBD	TBD	POE CofC	Request Report	POE012-EP13033S POE025-EP13050S	TBD
POE-FD	1	See Data Sheet	TBD	TBD	POE CofC	Request Report	POE028-FD20050S POE025-PD13050S POE050-FD25120S POE060-FD20120S	TBD
POE-PD	1	See Data Sheet	TBD	TBD	POE CofC	Request Report	POE012-PD13050S POE012-PD13120S POE025-PD13050S POE025-PD13120S POE030-PD13050S POE070-PD13050S POE072-PD13120S	TBD
SM13117EL	1	TBD	TBD	TBD	SMxxx CoC	Request Report	SM13117EL	China RoHS - Power
SM91047EL	1	TBD	TBD	TBD	SMxxx CoC	Request Report	SM91047EL	China RoHS - Power
SM91207L	1	See Data Sheet	TBD	TBD	SMxxx CoC	Request Report	SM91207L	China RoHS - Power
SM91208L	1	See Data Sheet	TBD	TBD	SMxxx CoC	Request Report	SM91208L	China RoHS - Power
SM91243L	1	See Data Sheet	TBD	TBD	TBD	Request Report	SM91243L	China RoHS - Power
