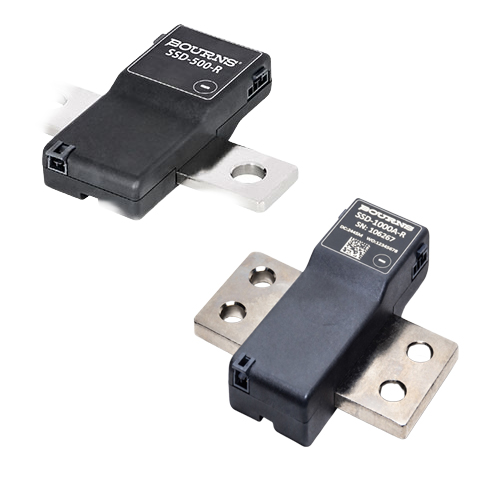

SSD-100A-R


DATA SHEET
Buy
Return to Product Line

Specifications

Technology
RS-485
Package Size
110 mm
Nominal Current (Amps)
±100
±250
±500
Shunt Resistance (Microohms)
300, 120, 60
Initial Accuracy
< ±0.1%
Bandwidth (kHz)
5
ADC Resolution
24 bits
Operating Temperature
-40 °C to +115 °C
Storage Temperature
-55 °C to +125 °C
Speed
up to 1100 RPS
Supply Voltage
5.0 V, 55 mA typical
24 V, 15 mA typical
