多转型精密电位器

首页 / 产品 / 可变电阻 / 多转型精密电位器

技术规格

Bourns 精密电位计是专为需要具正确性与高信赖度的控制应用而设计。这些装置有各种不同的组件种类，包括导电塑料、绕线式或是 Hybritron®，以及多种多样的尺寸; 同时也有单转型及多转型的电位器供选择。典型的应用包括了测量线性距离、产品设备的角度或旋转度、工业用测试与量测设备，以及医疗设备等。

Sensors, Panel Controls, Encoders, Precision Potentiometers, Dials 的冲突矿产资源报告：CMRT

产品标记此符号为目前可提供, 但不建议作新设计使用

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	封装直径	形状	Rotational Life	转数	密封性	止动装置	转轴	套管	组件	端子	曲线-线性	线性	最小电阻	最大电阻	定额功率	同轴	MDS	工程檔
3400	1-13/16 "	Round	2M	10	IP40		Metal	Metal	Wirewound	Solder Lug/Side	x	±0.15 %	100 Ω	500K Ω	5 W	2	3400S-L
3500/3501	7/8 "	Round	2M	10	IP65		Metal	Metal	Wirewound/Hybritron®	Solder Lug/Side	x	±0.2 %	50 Ω	200K Ω	2 W	2	3500S-L 3501H-L	Downloads
3540, 3541	7/8 "	Round	1-5M	10	IP40		Metal	Metal	Wirewound/Hybritron®	Solder Lug/Side	x	±0.25 % / ±10 %	100/1K Ω	100K Ω	2 W	2	3540S-L 3541H-L	Downloads
3543/3545	7/8 "	Round	300/500K	3-5	IP40		Metal	Metal	Wirewound	Solder Lug/Side	x	±0.25 %	20/50 Ω	50K Ω	1-1.5 W	2	3543S-L 3545S-L
3547	7/8 "	Round	750K/1.5M	3	IP50		Nickel Plated Brass/Stainless Steel	Brass/Bronze	Wirewound/Hybritron®	Solder Lug/Side	x	±0.25 %	200/1K Ω	50K/10K Ω	1 W	2	3547H 3547S
3548	7/8 "	Round	1M/2.5M	5	IP50		Nickel Plated Brass/Stainless Steel	Brass/Bronze	Wirewound/Hybritron®	Solder Lug/Side	x	±0.25 %	200/1K Ω	50K/10K Ω	1.5 W	2	3548H 3548S
3549	7/8 "	Round	2M/5M/10M	10	IP50		Nickel Plated Brass/Stainless Steel	Brass/Bronze	Wirewound/Hybritron®	Solder Lug/Side	x	±0.2 %	100/1K Ω	100K/100K Ω	2 W	2	3549H 3549S 3549H-1AF	Downloads
3590	7/8 "	Round	1M	10	IP65		Metal/Plastic	Metal/Plastic	Wirewound	PC Pins/Solder Lug/Side	x	±0.25 %	200 Ω	100K Ω	2 W		3590P-2-L 3590S-1-L 3590S-3L 3590S-2-L	Downloads
3700/3701	1/2 "	Round	1M/4M	10	IP40		Metal	Metal	Wirewound/Hybritron®	Solder Lugs/Turret Lugs	x	±0.25 %	2K Ω	100K Ω	1 W		3700S-L 3701H-L
3750/3751	1/2 "	Round	1M/4M	10	IP40		Metal	Metal	Wirewound/Hybritron®	Solder Lugs/Turret Lugs	x	±0.25 %	1K Ω	100K Ω	1 W		3750S-L 3751-L
3610	7/8 "	Round	50K	10	IP60		Digital Clock Face	Digital Clock Face	Wirewound	J-Hook/Rear	x	±0.5 %	100 Ω	100K Ω	1.5 W			Downloads
3680 Series	N/A	Square		N/A	IP40	x	Push Button	Metal	Cermet	Solder Lug/Rear	x	±0.1 %	50K Ω	1M Ω	2 W		3681S-L	Downloads

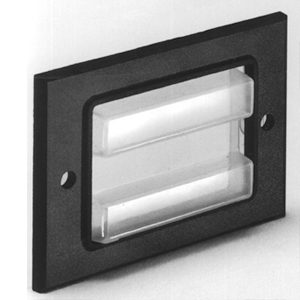

H-385	H-385 Notes: For use with Model 3680 digital pushbutton precision potentiometer. Protects front of the pot from unwanted entry of rain, dust, grease or oils.

美国柏恩(Bourns)10圈精密電位器新增雙滾珠軸承選擇

Bourns Announces New Multiturn Precision Potentiometer Slip Clutch Option

传感器与控制器解决方案指南

精密可变电阻与转数刻度盘简表手册

Turns / Degrees

Resistance

Linearity %

Watts

Mounting

PART NUMBER	Turns / Degrees	Resistance	Linearity %	Watts	Mounting	Element Style	Body Size	Shaft Revs.	Engineering	Buy Now

PART NUMBER

Turns / Degrees

Resistance

Linearity %

Watts

Mounting

Element Style

Body Size

Shaft Revs.

Engineering

Buy Now

Model/Datasheet	潮湿敏感度等级 MSL	焊接图表	封装标签	端子	RoHS 规范证书 CofC	第三方测试报告	物质资料表 MDS
3400	See Note	See Data Sheet	Label	e4	PP1	Request Report	3400S-L
3500/3501	See Note	See Data Sheet	Label	e4	PP2	Request Report	3500S-L 3501H-L
3540/3541	See Note		Label	e4	PP3	Request Report	3540S-L 3541H-L
3543/3545	See Note	See Data Sheet	Label	e4	PP3	Request Report	3543S-L 3545S-L
3547	See Note	See Data Sheet	Label	e4	PP2	Request Report	3547H 3547S
3548	See Note	See Data Sheet	Label	e4	PP2	Request Report	3548H 3548S
3549	See Note	See Data Sheet	Label	e4	PP2	Request Report	3549H 3549S 3549H-1AF
3590	See Note	See Data Sheet	Label	e3	PP2	Request Report	3590S-1-L 3590S-3L 3590S-2-L 3590S-6L
3700/3701	See Note	See Data Sheet	Label	e4	PP2	Request Report	3700S-L 3701H-L
3750/3751	See Note	See Data Sheet	Label	e4	PP2	Request Report	3750S-L 3751-L
3610	See Note	See Data Sheet	TBD	e3	PP1	Request Report	3610S
3680	See Note	See Data Sheet	Label	e3	PP4	Request Report	3681S-L
H-385	See Note	N/A	TBD	N/A	PP1	Request Report	H-385
6534	See Note	See Data Sheet	Label	e4	PP1	Request Report	6534S
6537/6538	See Note	See Data Sheet	Label	e4	PP2	Request Report	6538S
6539/6639	See Note	See Data Sheet	Label	e4	PP2	Request Report	6539S 6639S
6574	See Note	See Data Sheet	Label	e4	PP2	Request Report	6574S
6637	See Note	See Data Sheet	Label	e4	PP2	Request Report	6637S
6638	See Note	See Data Sheet	Label	e4	PP2	Request Report	6638S
6657	See Note	See Data Sheet	Label	e4	PP2	Request Report	6657S
6674	See Note	See Data Sheet	Label	e4	PP1	Request Report	6674S
