Design Kits - Multifuse® PPTC Resettable Fuses

Home / Resources / Design Tools / Design Kits / Multifuse® PPTC Resettable Fuses

Bourns has a wide range of sample kits comprising of specific Multifuse® PPTC resettable fuse products. These design kits are made to help engineers easily select the best product for their application. They also come available for specific applications and markets. In order to obtain a Bourns® Design Kit please contact your local Bourns sales office or authorized Bourns distributor.

Kit Number Kit Photo Description Part Numbers

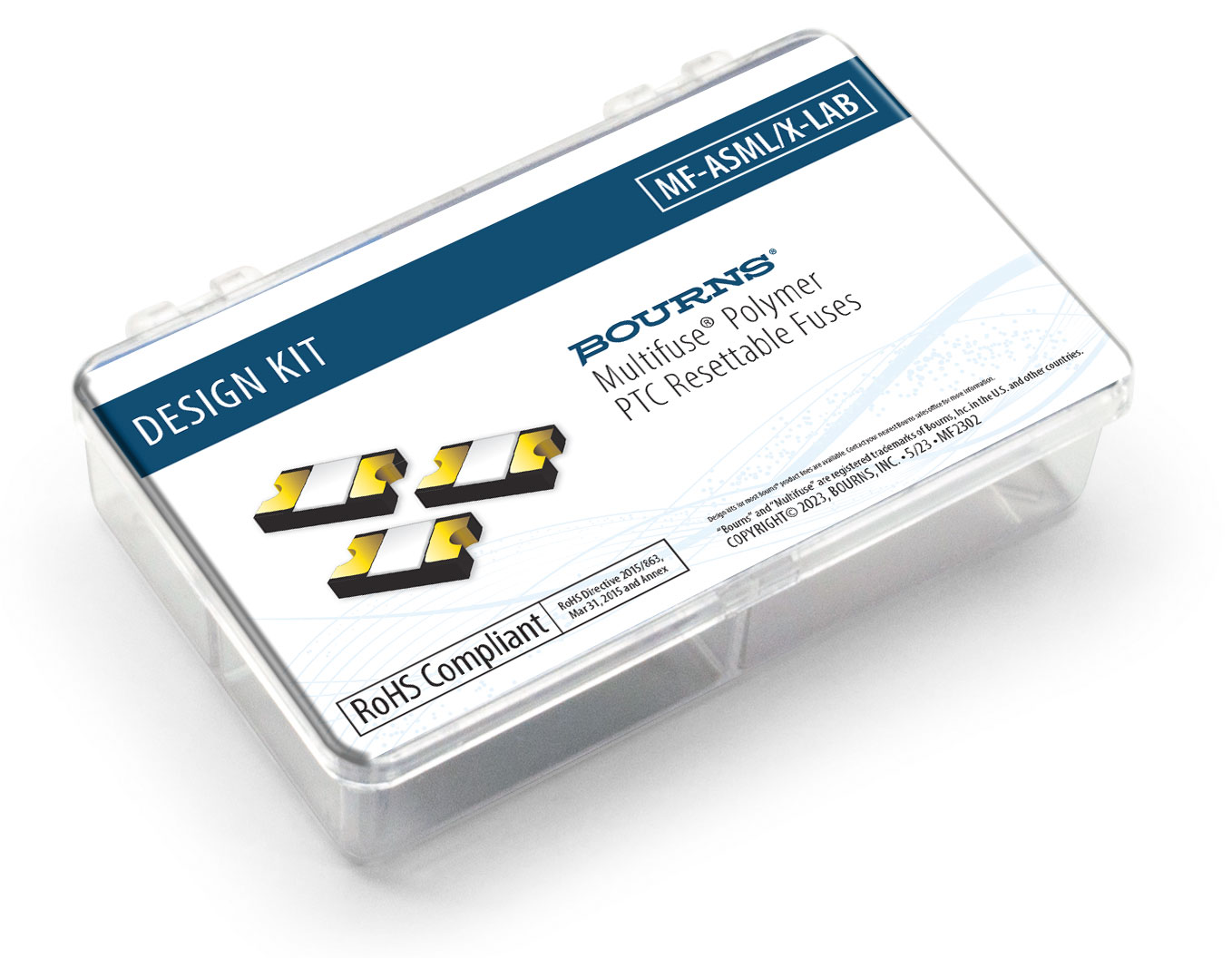

MF-ASML/X-LAB Low Ohmic PTC Resettable Fuses MF-ASML010/6
MF-ASML020/6
MF-ASML035/6
MF-ASML050/6
MF-AUTOLAB dk_MF-AUTOLAB_photo Resettable fuses for automotive applications MF-SMHT136-2
MF-SMHT160-2
MF-RHT070-0
MF-RHT450-0
MF-RHT650-0
MF-RHT1300-0
MF-MSMF020-2
MF-MSMF075/30-2
MF-BATTERYLAB dk_MF-BATTERYLAB_photo Resettable fuses for battery pack applications MF-S120
MF-S420
MF-LS180
MF-VS210
MF-SVS210
MF-LR260
MF-LR380
MF-LR550
MF-LR730/20
MF-LR900/20
MF-DATAPORTLAB dk_MF-DATAPORTLAB_photo Resettable fuses for dataport applications MF-NSMF150-2
MF-MSMF110-2
MF-SMDF050-2
MF-SM150/33-2
CG0603MLC-05E
CG0603MLC-12E
MF-MSMF250/16X-2-6
MF-PSMF110X-2
MF-FREEX MF-FREEX Resettable fuses with freeXpansion™ design MF-FSMF010X-2
MF-MSMF110/24X-2
MF-MSMF150/24X-2
MF-MSMF250/16X-2
MF-NSMF035X-2
MF-PSMF035X-2
MF-LSMF185/33X-2
MF-LSMF300/24X-2

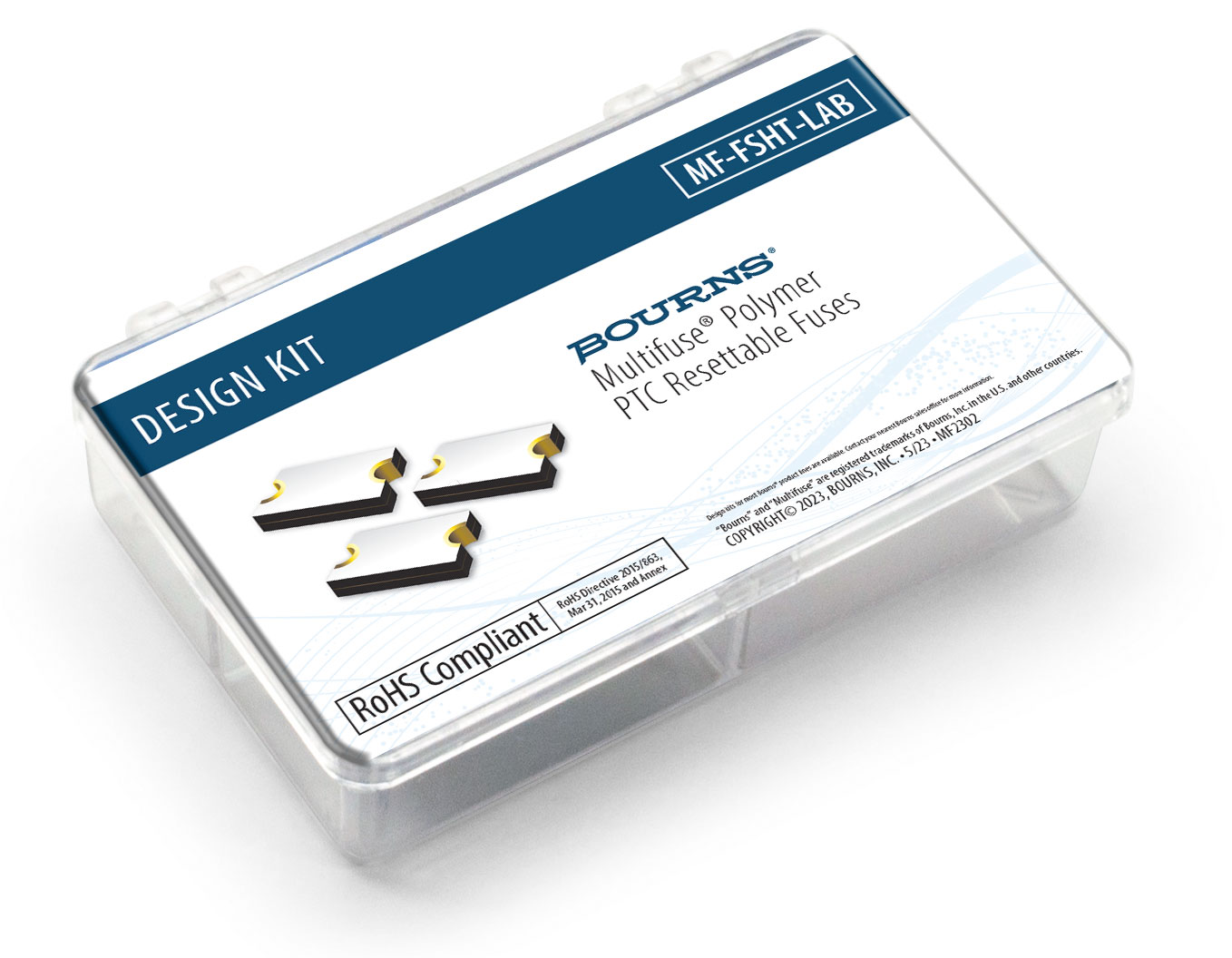

MF-FSHT-LAB PTC Resettable Fuses MF-FSHT005KX
MF-FSHT010KX
MF-FSHT016KX

MF-FSML/X-LAB Low Ohmic PTC Resettable Fuses MF-FSML075/8
MF-FSML125/8
MF-FSML175/8
MF-FSML200/6
MF-FSML250/6
MF-FSML300/6

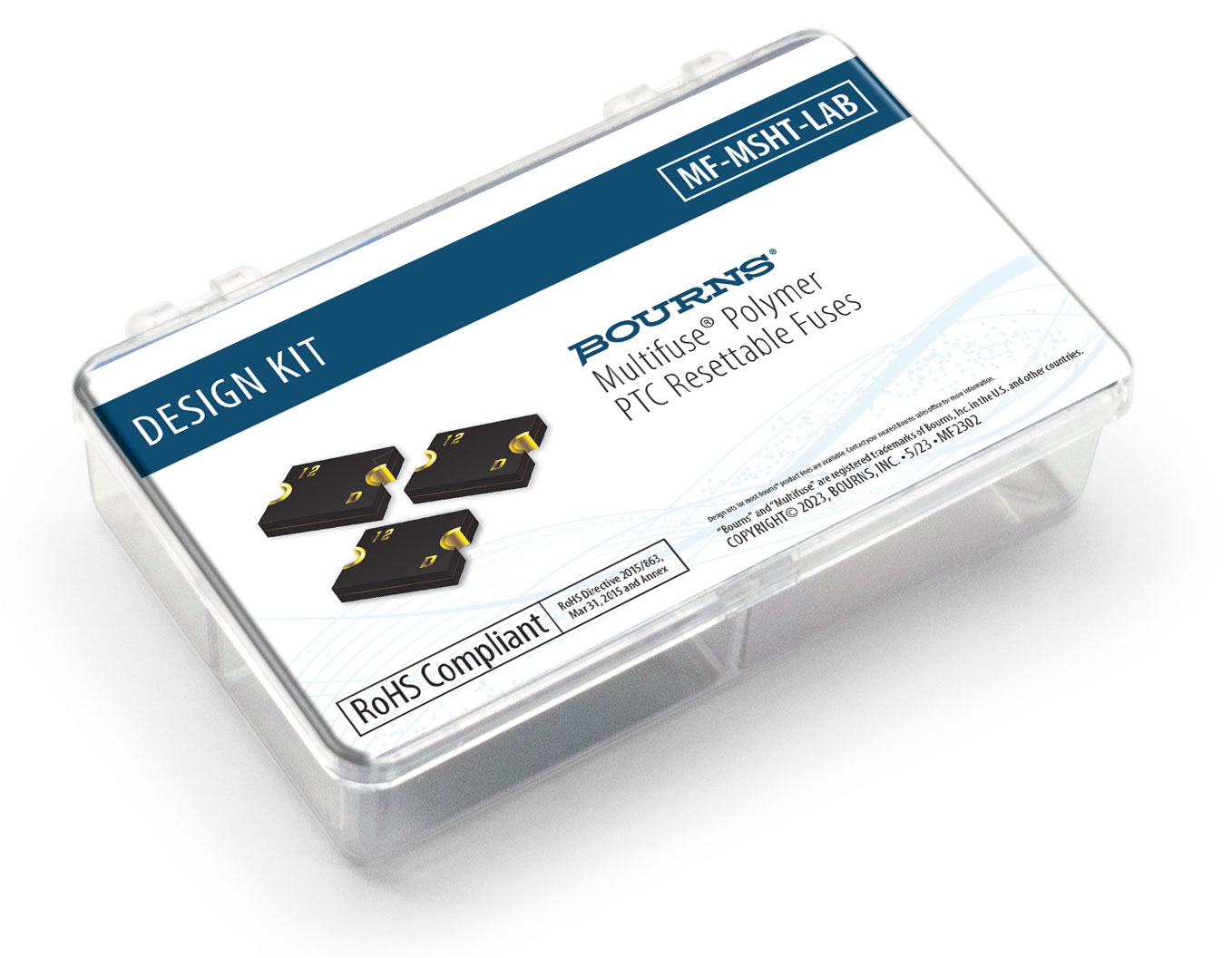

MF-MSHT-LAB PTC Resettable Fuses MF-MSHT020KX
MF-MSHT035KX
MF-MSHT075KX
MF-MSHT110KX
MF-MSHT150KX
MF-MSHT175KX
MF-MSMFLAB MF-MSMFLAB 1812 (4532 metric) sized SMD models MF-MSMF010-2
MF-MSMF014-2
MF-MSMF050-2
MF-MSMF075/24-2
MF-MSMF110/16-2
MF-MSMF150-2
MF-MSMF125-2
MF-MSMF250/16X-2

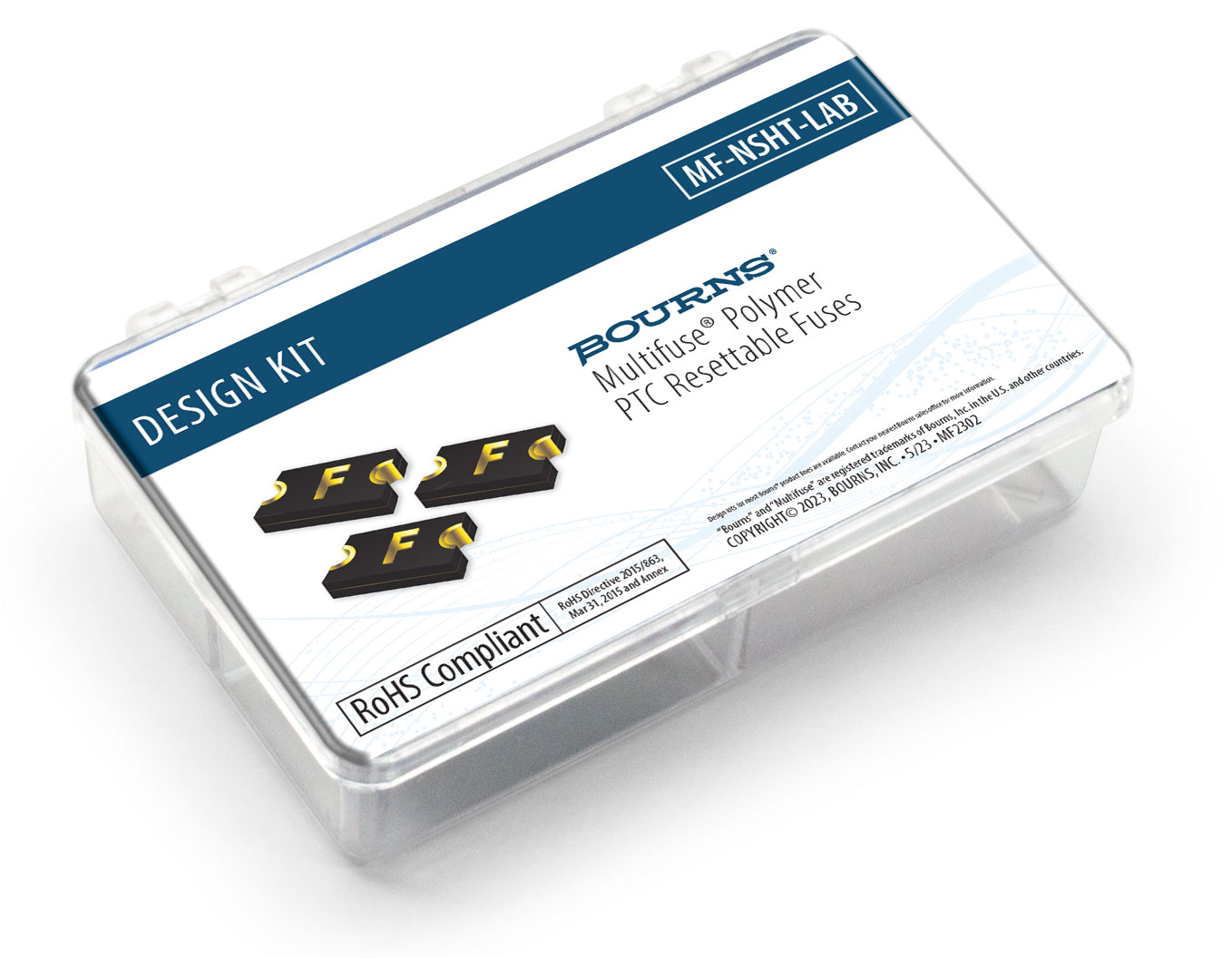

MF-NSHT-LAB PTC Resettable Fuses MF-NSHT010KX
MF-NSHT016KX
MF-NSHT020KX
MF-NSHT035KX
MF-NSHT050KX
MF-NSHT075KX

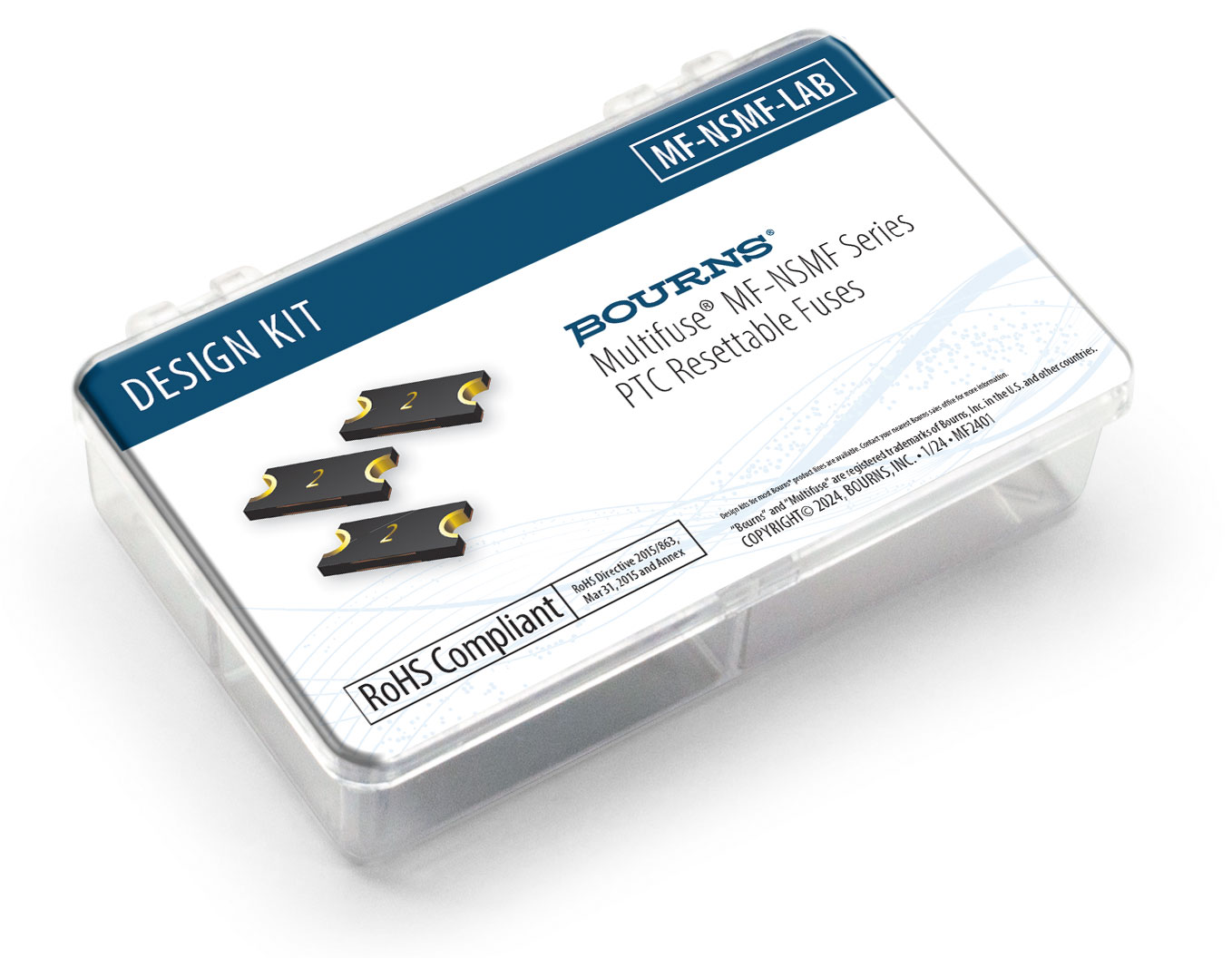

MF-NSMFLAB MF-NSMFLAB 1206 (3216 metric) sized SMD models MF-NSMF012-2
MF-NSMF020-2
MF-NSMF035-2
MF-NSMF050-2
MF-NSMF075-2
MF-NSMF150-2
MF-NSMF200-2
MF-NSMF110-2
MF-NSML/X-LAB1 Low Ohmic PTC Resettable Fuses MF-NSML150/12
MF-NSML175/12
MF-NSML200/12
MF-NSML260/12
MF-NSML300/12
MF-NSML350/12
MF-NSML/X-LAB2 Low Ohmic PTC Resettable Fuses MF-NSML380/12
MF-NSML400/12
MF-NSML450/12
MF-NSML500/6
MF-NSML550/6
MF-NSML600/6
MF-NSML-LAB1 dk_mf-nsml-lab1_photo Low Ohmic PTC Resettable Fuses MF-NSML150-2
MF-NSML175-2
MF-NSML190-2
MF-NSML200-2
MF-NSML260-2
MF-NSML300-2
MF-NSML350-2
MF-NSML380-2
MF-NSML-LAB2 dk_mf-nsml-lab1_photo Low Ohmic PTC Resettable Fuses MF-NSML400-2
MF-NSML450-2
MF-NSML500-2
MF-NSML550-2
MF-NSML600-2
MF-PSHT-LAB PTC Resettable Fuses MF-PSHT005KX
MF-PSHT010KX
MF-PSHT016KX
MF-PSHT020KX
MF-PSHT035KX
MF-PSHT050KX

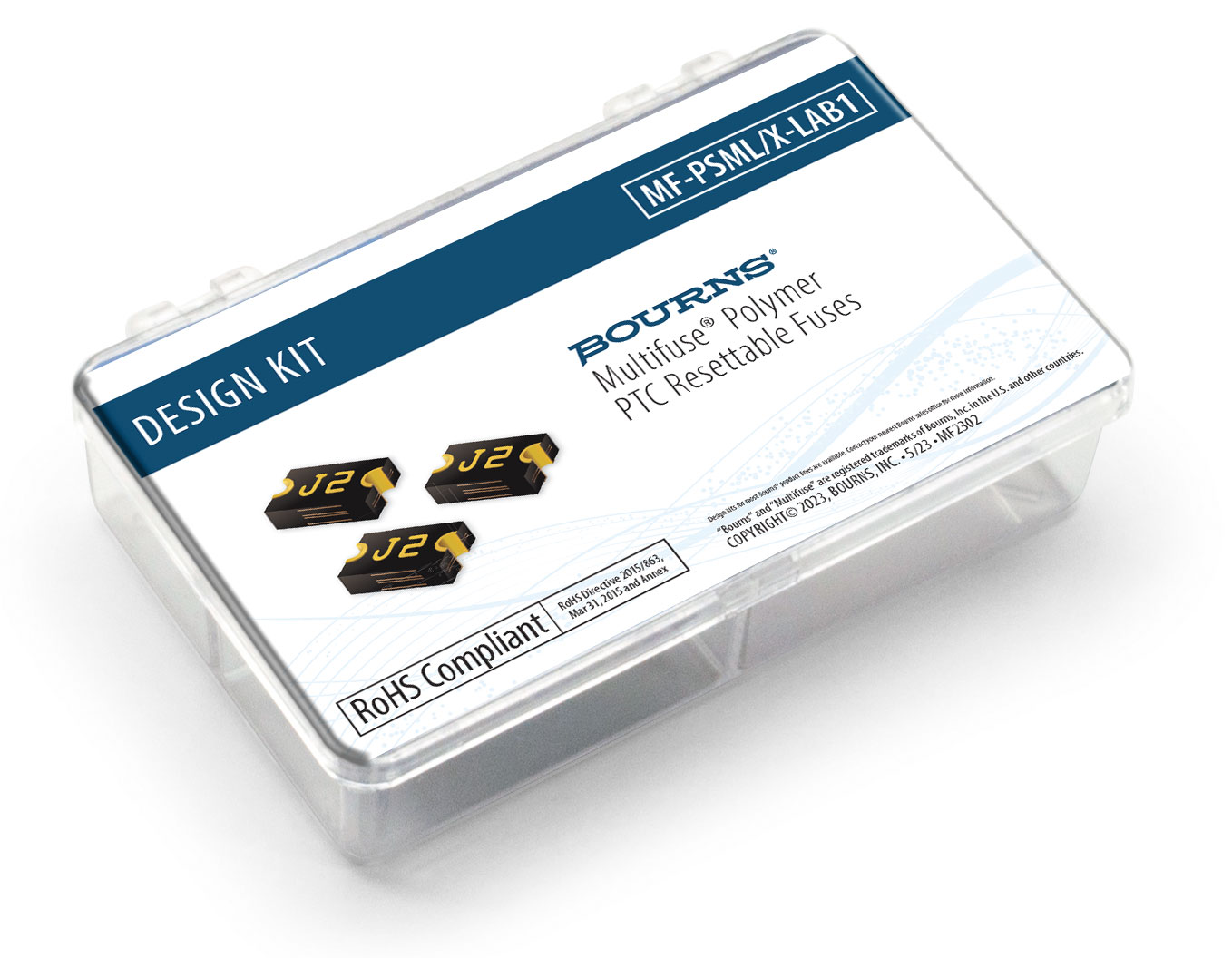

MF-PSML/X-LAB1 Low Ohmic PTC Resettable Fuses MF-PSML075/12
MF-PSML110/12
MF-PSML125/12
MF-PSML150/12
MF-PSML175/12
MF-PSML200/12
MF-PSML/X-LAB2 Low Ohmic PTC Resettable Fuses MF-PSML250/12
MF-PSML300/12
MF-PSML350/8
MF-PSML380/8
MF-PSML400/8
MF-PSML450/8
MF-RLAB-H MF_RLAB-H Radial Leaded Through-Hole Models MF-R135
MF-R160
MF-R185
MF-R250
MF-R300
MF-R400
MF-R500
MF-R600
MF-R700
MF-R800
MF-R900
MF-RLAB-L MF-RLAB-L Radial Leaded Through-Hole Models MF-R005
MF-R010
MF-R017
MF-R020
MF-R025
MF-R030
MF-R040
MF-R050
MF-R065
MF-R075
MF-R090
MF-R110
MF-RXLAB MF-RXLAB Radial Leaded Through-Hole Models MF-RX110
MF-RX135
MF-RX160
MF-RX185
MF-RX250
MF-RX300
MF-RX375
MF-SMHT-LAB PTC Resettable Fuses MF-SMHT136
MF-SMHT160
MF-SMHT300
MF-SMLAB MF-SMLAB Surface Mount Models MF-SM030
MF-SM050
MF-SM075
MF-SM100
MF-SM125
MF-SM150
MF-SM200
MF-SM250
MF-SM260
MF-TELECOMLAB MF-TELECOMLAB Resettable fuses for telecom applications MF-RX012/250-0
MF-RX012/250U-0
MF-RX014/250-0
MF-RX014/250U-0
MF-RX018/250-0
MF-R015/600-0
MF-R016/600-0
MF-SM013/250-2
MF-USHT-LAB PTC Resettable Fuses MF-USHT010KX
MF-USHT035KX
MF-USHT075KX
MF-USHT110KX
MF-USHT125KX
MF-USHT150KX
MF-USMFLAB MF-USMFLAB 1210 (3225/metric) sized SMD models MF-USMF005
MF-USMF010
MF-USMF020
MF-USMF035
MF-USMF050
MF-USMF075
MF-USMF110
MF-USMF150
MF-USML/X-LAB1 Low Ohmic PTC Resettable Fuses MF-USML175/12
MF-USML200/12
MF-USML260/12
MF-USML300/12
MF-USML350/12
MF-USML400/12
MF-USML/X-LAB2 Low Ohmic PTC Resettable Fuses MF-USML450/12
MF-USML500/12
MF-USML550/12
MF-USML600/6
MF-USML650/6
MF-USML700/6
MF-USML-LAB1 dk_mf-nsml-lab1_photo 1210 (3225 metric) sized SMD Low Ohmic models (1.75 A - 3.0 A) MF-USML175-2
MF-USML190-2
MF-USML200-2
MF-USML230-2
MF-USML250-2
MF-USML270-2
MF-USML300-2
MF-USML-LAB2 dk_mf-nsml-lab1_photo 1210 (3225 metric) sized SMD Low Ohmic models (3.5 A - 7.0 A) MF-USML350-2
MF-USML380-2
MF-USML400-2
MF-USML450-2
MF-USML500-2
MF-USML600-2
MF-USML650-2
MF-USML700-2
