Resistors - AEC-Q200 Compliant

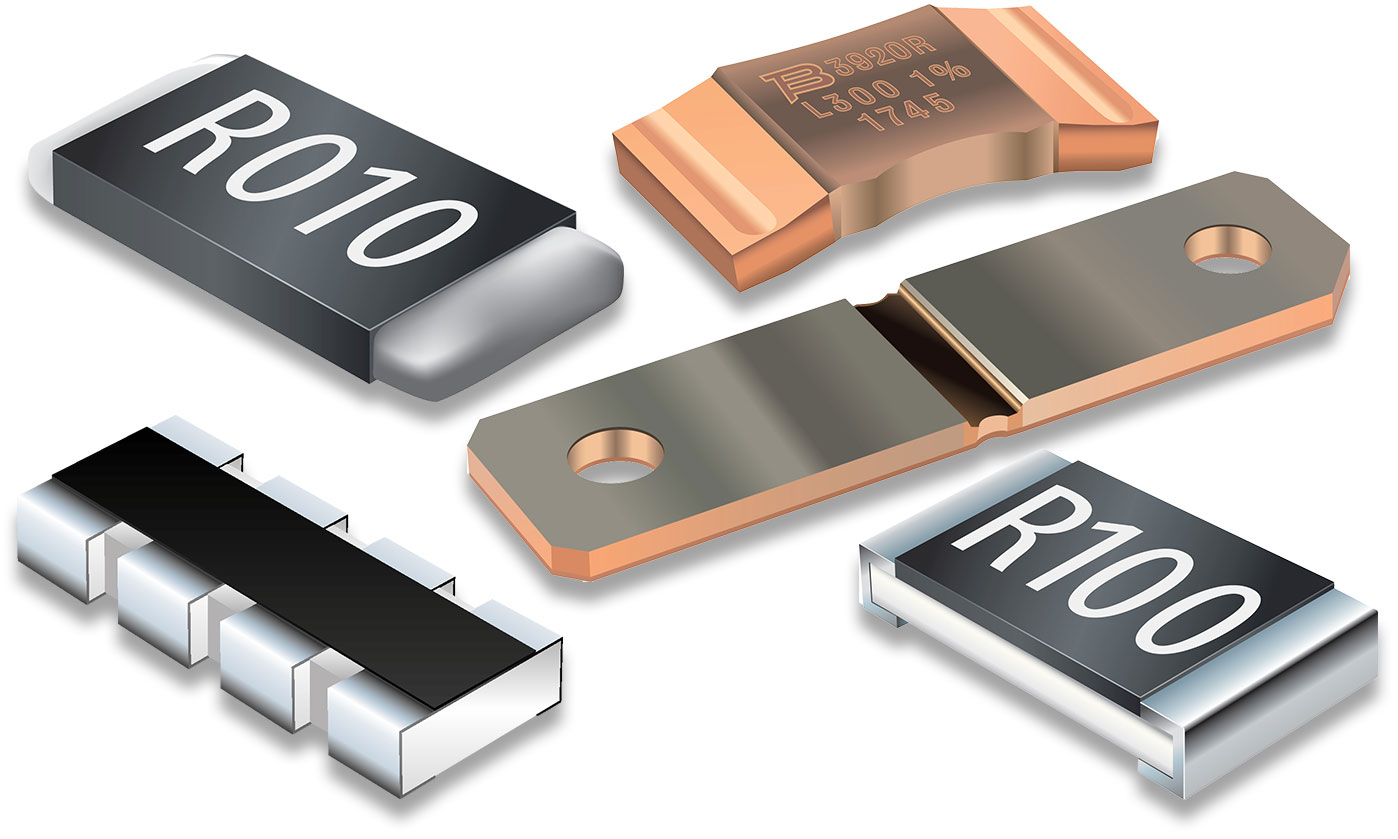

Power Resistors - AEC-Q200 Qualified for Automotive Applications

Bourns provides a wide selection of AEC-Q200 compliant resistors. Thick film, metal foil, metal strip resistive elements are available for various applications.

For more information, please download below application notes, product datasheets and brochures.

Characteristics
Size	0201 to 2512 Thick Film Chip 0805 to 1206 Metal Foil Chip 0805 to 2512 Metal Strip Chip 2512 to 5931 EB Welded Shunts 6918 to 8515 Metric EB Welded Shunts DPAK, D²PAK, TO220 high power thick film
Rated power at 70 °C	0.05 to 50 W
Resistance Range	25 µΩ to 100 MΩ
Resistance Tolerance	0.5 %, ±1 %, ±5 %
Temperature Coefficient	±50 to ±400 ppm/°C
Operating Temperature Range	–55 to +155/170 °C

Available features

RoHS compliant*
Suitable for most types of soldering processes
General purpose thick film chip resistors and arrays High power thick film chip resistors
High surge withstand thick film chip resistors
High voltage thick film chip resistors
Sulfur-resistant chip resistors and arrays
Metal foil and metal strip current sense chip resistors
Four terminal metal strip resistors EB welded shunts
High power thick film resistors
Customized products available

Applications

Current sensing
Power supplies
DC-DC converters
Battery management systems
Motor drives, controls
Test and measurement
Inverters
Rectifiers
Capacitor pre/discharging
Snubber circuits
Current limiting
Balancing resistor
Voltage dividers
Lighting
Heater

Documents

*RoHS Directive 2015/863, Mar 31, 2015 and Annex.

Specifications

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	Data Sheet	Profile/Package Style	Material	Resistance Range	Tolerances	Temperature Coefficient	Power (Watts)	MDS	Design Files	Buy Now

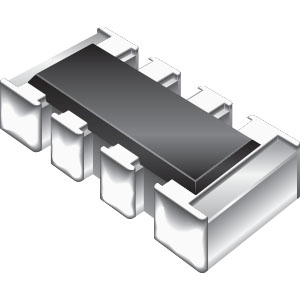

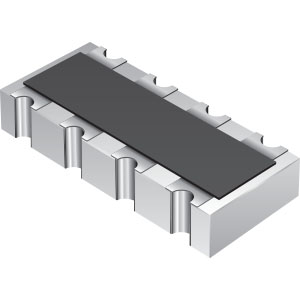

CAT-A	CAT10A	Concave Chip Array	Thick Film	10 Ω to 1 MΩ	±5 %	±300 ppm/°C	0.063 W	CAT10A-J2LF CAT10A-J4LF	Downloads	Buy
CAT-A	CAT16A	Concave Chip Array	Thick Film	10 Ω to 1 MΩ	±1 %; ±5 %	±200 ppm/°C, ±400 ppm/°C	0.063 W	CAT16A-4LF	Downloads	Buy
CAY-A	CAY10A	Convex Chip Array	Thick Film	3 Ω to 1 MΩ	±5 %	±200 ppm/°C, ±500 ppm/°C	0.063 W	CAY10A-J2LF CAY10A-J4LF	Downloads	Buy
CAY-A	CAY16A	Convex Chip Array	Thick Film	3 Ω to 1 MΩ	±1 %; ±5 %	±200 ppm/°C, ±400 ppm/°C	0.063 W	CAY16A-x4LF	Downloads	Buy
CAY-A-AS	CAY10A-AS	Convex Chip Array Sulfur Resistant	Thick Film	3 Ω to 1 MΩ	±5 %	±200 ppm/°C, ±500 ppm/°C	0.063 W	CAY10A-J2AS CAY10A-J4AS	Downloads	Buy
CAY-A-AS	CAY16A-AS	Convex Chip Array Sulfur Resistant	Thick Film	3 Ω to 1 MΩ	±5 %	±200 ppm/°C, ±400 ppm/°C	0.063 W	CAY16A-J4AS	Downloads	Buy
CR-A	CR0201A	Chip	Thick Film	1 Ω to 10 MΩ	1 % 5 %	-200 to +600 ppm ±100 ppm ±200 ppm ±400 ppm	0.05 W	CR0201A	Downloads	Buy
CR-A	CR0402A	Chip	Thick Film	1 Ω to 20 MΩ	1 % 5 %	-200 to +600 ppm ±100 ppm ±200 ppm ±400 ppm	0.063 W	CR0402A	Downloads	Buy
CR-A	CR0603A	Chip	Thick Film	1 Ω to 20 MΩ	1 % 5 %	-200 to +600 ppm ±100 ppm ±200 ppm ±400 ppm	0.1 W	CR0603A	Downloads	Buy
CR-A	CR0805A	Chip	Thick Film	1 Ω to 20 MΩ	1 % 5 %	-200 to +600 ppm ±100 ppm ±200 ppm ±400 ppm	0.125 W	CR0805A	Downloads	Buy
CR-A	CR1206A	Chip	Thick Film	1 Ω to 20 MΩ	1 % 5 %	-200 to +600 ppm ±100 ppm ±200 ppm ±400 ppm	0.25 W	CR1206A	Downloads	Buy
CR-A	CR1210A	Chip	Thick Film	1 Ω to 20 MΩ	1 % 5 %	-200 to +600 ppm ±100 ppm ±200 ppm ±400 ppm	0.33 W	CR1210A	Downloads	Buy
CR-A	CR2010A	Chip	Thick Film	1 Ω to 20 MΩ	1 % 5 %	-200 to +600 ppm ±100 ppm ±200 ppm ±400 ppm	0.5 W	CR2010A	Downloads	Buy
CR-A	CR2512A	Chip	Thick Film	1 Ω to 20 MΩ	1 % 5 %	-200 to +600 ppm ±100 ppm ±200 ppm ±400 ppm	1 W	CR2512A	Downloads	Buy

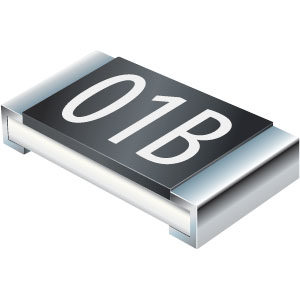

CR-A-AS	CR0201A-AS	Chip	Thick Film	1 Ω to 10 MΩ	1 %, 5 %	–200 to +600 ppm ±100 ppm ±200 ppm ±400 ppm	0.05 W	CR0201A-AS	Downloads	Buy
CR-A-AS	CR0402A-AS	Chip	Thick Film	1 Ω to 20 MΩ	1 %, 5 %	–200 to +600 ppm ±100 ppm ±200 ppm ±400 ppm	0.063 W	CR0402A-AS	Downloads	Buy
CR-A-AS	CR0603A-AS	Chip	Thick Film	1 Ω to 20 MΩ	1 %, 5 %	–200 to +600 ppm ±100 ppm ±200 ppm ±400 ppm	0.1 W	CR0603A-AS	Downloads	Buy
CR-A-AS	CR0805A-AS	Chip	Thick Film	1 Ω to 20 MΩ	1 %, 5 %	–200 to +600 ppm ±100 ppm ±200 ppm ±400 ppm	0.125 W	CR0805A-AS	Downloads	Buy
CR-A-AS	CR1206A-AS	Chip	Thick Film	1 Ω to 20 MΩ	1 %, 5 %	–200 to +600 ppm ±100 ppm ±200 ppm ±400 ppm	0.250 W	CR1206A-AS	Downloads	Buy
CR-A-AS	CR1210A-AS	Chip	Thick Film	1 Ω to 20 MΩ	1 %, 5 %	–200 to +600 ppm ±100 ppm ±200 ppm ±400 ppm	0.33 W	CR1210A-AS	Downloads	Buy
CR-A-AS	CR2010A-AS	Chip	Thick Film	1 Ω to 20 MΩ	1 %, 5 %	–200 to +600 ppm ±100 ppm ±200 ppm ±400 ppm	0.5 W	CR2010A-AS	Downloads	Buy
CR-A-AS	CR2512A-AS	Chip	Thick Film	1 Ω to 20 MΩ	1 %, 5 %	–200 to +600 ppm ±100 ppm ±200 ppm ±400 ppm	1 W	CR2512A-AS	Downloads	Buy
CRT-A	CRT1206A	Chip	Thin Film	10 Ω~1M Ω	0.1 % to 1 %	±10 to ±50 ppm	0.250 W	CRT1206A	Downloads	Buy
CRT-A	CRT0805A	Chip	Thin Film	10 Ω~800K Ω	0.1 % to 1 %	±10 to ±50 ppm	0.125 W	CRT0805A	Downloads	Buy
CRT-A	CRT0603A	Chip	Thin Film	10 Ω~511K Ω	0.1 % to 1 %	±10 to ±50 ppm	0.100 W	CRT0603A	Downloads	Buy
CRT-A	CRT0402A	Chip	Thin Film	10 Ω to 100K Ω	0.1 % to 1 %	±10 to ±50 ppm	0.063 W	CRT0402A	Downloads	Buy
CRF-J	CRF0805 Jumper			0 Ω Jumper	N/A	3800 PPM/°C	0.5 W	CRF0805-J	Downloads	Buy
CRF-J	CRF1206 Jumper			0 Ω Jumper	N/A	3800 PPM/°C	1 W	CRF1206-J	Downloads	Buy
CRF-J	CRF2010 Jumper			0 Ω Jumper	N/A	3800 PPM/°C	1.5 W	CRF2010-J	Downloads	Buy
CRF-J	CRF2512 Jumper			0 Ω Jumper	N/A	3800 PPM/°C	2 W	CRF2512-J	Downloads	Buy

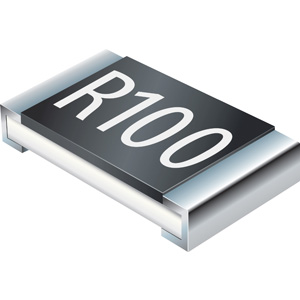

CRM-A	CRM0603A	Chip	Thick Film	0.05 Ω to 1 MΩ	0.5 %, 1 %, 5 %	±100 ppm ±150 ppm ±200 ppm ±250 ppm	0.125 W	CRM0603A	Downloads	Buy
CRM-A	CRM0805A	Chip	Thick Film	0.05 Ω to 1 MΩ	0.5 %, 1 %, 5 %	±100 ppm ±150 ppm ±200 ppm ±250 ppm	0.25 W	CRM0805A	Downloads	Buy
CRM-A	CRM1206A	Chip	Thick Film	0.05 Ω to 1 MΩ	0.5 %, 1 %, 5 %	±100 ppm ±150 ppm ±200 ppm ±250 ppm	0.5 W	CRM1206A	Downloads	Buy
CRM-A	CRM1210A	Chip	Thick Film	0.05 Ω to 1 MΩ	0.5 %, 1 %, 5 %	±100 ppm ±150 ppm ±200 ppm ±250 ppm	0.5 W	CRM1210A	Downloads	Buy
CRM-A	CRM2010A	Chip	Thick Film	0.05 Ω to 1 MΩ	0.5 %, 1 %, 5 %	±100 ppm ±150 ppm ±200 ppm ±250 ppm	1 W	CRM2010A	Downloads	Buy
CRM-A	CRM2512A	Chip	Thick Film	0.05 Ω to 1 MΩ	0.5 %, 1 %, 5 %	±100 ppm ±150 ppm ±200 ppm ±250 ppm	2 W	CRM2512A	Downloads	Buy
CRM-Q	CRM1206-Q	Chip	Thick Film	1 Ω to 1 MΩ	1%, 5%	±100 ppm ±200 ppm	0.5 W	CRM1206-Q_MDS	Downloads	Buy
CRM-Q	CRM2010-Q	Chip	Thick Film	1 Ω to 1 MΩ	1%, 5%	±100 ppm ±200 ppm	1 W	CRM2010-Q_MDS	Downloads	Buy
CRM-Q	CRM2512-Q	Chip	Thick Film	1 Ω to 1 MΩ	1%, 5%	±100 ppm ±200 ppm	2 W	CRM2512-Q_MDS	Downloads	Buy

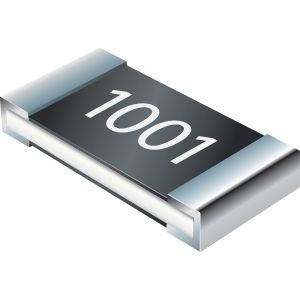

CRS-A	CRS0603A	Chip	Thick Film	1 Ω to 1 MΩ	1 %, 5 %	±100 ppm ±150 ppm ±200 ppm	0.125 W	CRS0603A	Downloads	Buy
CRS-A	CRS0805A	Chip	Thick Film	1 Ω to 1 MΩ	1 %, 5 %	±100 ppm ±150 ppm ±200 ppm	0.25 W	CRS0805A	Downloads	Buy
CRS-A	CRS1206A	Chip	Thick Film	1 Ω to 1 MΩ	1 %, 5 %	±100 ppm ±150 ppm ±200 ppm	0.5 W	CRS1206A	Downloads	Buy
CRS-A	CRS1210A	Chip	Thick Film	1 Ω to 1 MΩ	1 %, 5 %	±100 ppm ±150 ppm ±200 ppm	0.5 W	CRS1210A	Downloads	Buy
CRS-A	CRS2010A	Chip	Thick Film	1 Ω to 1 MΩ	1 %, 5 %	±100 ppm ±150 ppm ±200 ppm	1 W	CRS2010A	Downloads	Buy
CRS-A	CRS2512A	Chip	Thick Film	1 Ω to 1 MΩ	1 %, 5 %	±100 ppm ±150 ppm ±200 ppm	2 W	CRS2512A	Downloads	Buy

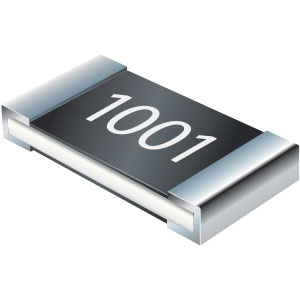

CRS-Q	CRS1206-Q	Chip	Thick Film	1 Ω to 1 MΩ	1%, 5%	±100 ppm ±200 ppm	0.5 W	CRS1206-Q_MDS	Downloads	Buy
CRS-Q	CRS2010-Q	Chip	Thick Film	1 Ω to 1 MΩ	1%, 5%	±100 ppm ±200 ppm	1 W	CRS2010-Q_MDS	Downloads	Buy
CRS-Q	CRS2512-Q	Chip	Thick Film	1 Ω to 1 MΩ	1%, 5%	±100 ppm ±200 ppm	2 W	CRS2512-Q_MDS	Downloads	Buy

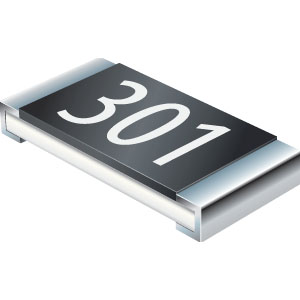

CMP-A	CMP0603A	Chip	Thick Film	10 Ω to 1 MΩ	1 % 5 %	±100 ppm ±200 ppm	0.25 W	CMP0603A	Downloads	Buy
CMP-A	CMP0805A	Chip	Thick Film	10 Ω to 1 MΩ	1 % 5 %	±100 ppm ±200 ppm	0.5 W	CMP0805A	Downloads	Buy
CMP-A	CMP1206A	Chip	Thick Film	10 Ω to 1 MΩ	1 % 5 %	±100 ppm ±200 ppm	0.75 W	CMP1206A	Downloads	Buy
CMP-A	CMP2010A	Chip	Thick Film	10 Ω to 1 MΩ	1 % 5 %	±100 ppm ±200 ppm	1 W	CMP2010A	Downloads	Buy
CMP-A	CMP2512A	Chip	Thick Film	10 Ω to 1 MΩ	1 % 5 %	±100 ppm ±200 ppm	1.5 W	CMP2512A	Downloads	Buy

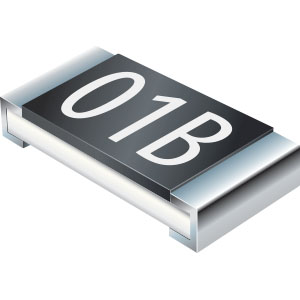

CMP-Q	CMP0603-Q	Chip	Thick Film	10 Ω to 1 MΩ	1%, 5%	±100 ppm ±200 ppm	0.25 W	CMP0603-Q_MDS	Downloads	Buy
CMP-Q	CMP0805-Q	Chip	Thick Film	10 Ω to 1 MΩ	1%, 5%	±100 ppm ±200 ppm	0.5 W	CMP0805-Q_MDS	Downloads	Buy
CMP-Q	CMP1206-Q	Chip	Thick Film	10 Ω to 1 MΩ	1%, 5%	±100 ppm ±200 ppm	0.75 W	CMP1206-Q_MDS	Downloads	Buy
CMP-Q	CMP2010-Q	Chip	Thick Film	10 Ω to 1 MΩ	1%, 5%	±100 ppm ±200 ppm	1 W	CMP2010-Q_MDS	Downloads	Buy
CMP-Q	CMP2512-Q	Chip	Thick Film	10 Ω to 1 MΩ	1%, 5%	±100 ppm ±200 ppm	1.5 W	CMP2512-Q_MDS	Downloads	Buy
CHP-A	CHP0603A	Chip	Thick Film	10 Ω to 1 MΩ	1 % 5 %	±100 ppm ±150 ppm ±200 ppm	0.33 W	CHP0603-A	Downloads	Buy
CHP-A	CHP0805A	Chip	Thick Film	10 Ω to 1 MΩ	1 % 5 %	±100 ppm ±150 ppm ±200 ppm	0.5 W	CHP0805-A	Downloads	Buy
CHP-A	CHP1206A	Chip	Thick Film	10 Ω to 1 MΩ	1 % 5 %	±100 ppm ±150 ppm ±200 ppm	0.75 W	CHP1206-A	Downloads	Buy
CHP-A	CHP2512A	Chip	Thick Film	10 Ω to 1 MΩ	1 % 5 %	±100 ppm ±150 ppm ±200 ppm	3 W	CHP2512-A	Downloads	Buy

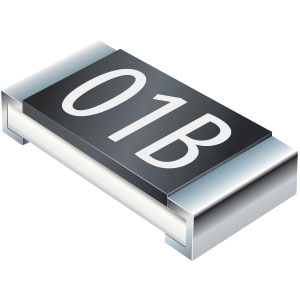

CHP-Q	CHP0603-Q	Chip	Thick Film	10 Ω to 1 MΩ	1%, 5%	±100 ppm ±200 ppm	0.33 W	CHP0603-Q_MDS	Downloads	Buy
CHP-Q	CHP0805-Q	Chip	Thick Film	10 Ω to 1 MΩ	1%, 5%	±100 ppm ±200 ppm	0.5 W	CHP0805-Q_MDS	Downloads	Buy
CHP-Q	CHP1206-Q	Chip	Thick Film	10 Ω to 1 MΩ	1%, 5%	±100 ppm ±200 ppm	0.75 W	CHP1206-Q_MDS	Downloads	Buy

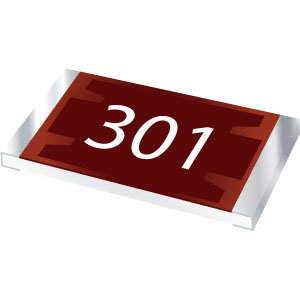

CHV-A	CHV0603-A	Chip	Thick Film	100 kΩ to 22 MΩ	1 % 5 %	±100 ppm ±200 ppm	0.1	CHV0603-A	Downloads	Buy
CHV-A	CHV0805-A	Chip	Thick Film	100 kΩ to 22 MΩ	1 % 5 %	±100 ppm ±200 ppm	0.125	CHV0805-A	Downloads	Buy
CHV-A	CHV1206-A	Chip	Thick Film	100 kΩ to 100 MΩ	1 % 5 %	±100 ppm ±200 ppm	0.25	CHV1206-A	Downloads	Buy
CHV-A	CHV2010-A	Chip	Thick Film	100 kΩ to 100 MΩ	1 % 5 %	±100 ppm ±200 ppm	0.5	CHV2010-A	Downloads	Buy
CHV-A	CHV2512-A	Chip	Thick Film	100 kΩ to 100 MΩ	1 % 5 %	±100 ppm ±200 ppm	1	CHV2512-A	Downloads	Buy

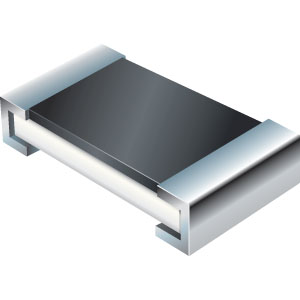

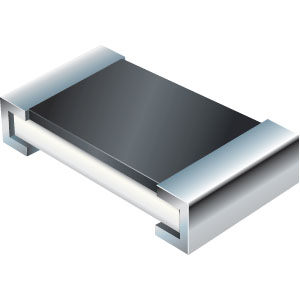

CFN-A	CFN0402A	Chip	Metal Foil	0.01; 0.02 Ω	1 % / 5 %	±100 ppm	0.2 W	CFN0402	Downloads	Buy
CFN-A	CFN0603A	Chip	Metal Foil	0.005 to 0.02 Ω	1 % / 5 %	±50 ppm / ±100 ppm	0.5 W	CFN0603	Downloads	Buy
CFN-A	CFN0805A	Chip	Metal Foil	0.005 to 0.03 Ω	1 % / 5 %	±50 ppm / ±100 ppm	0.75 W	CFN0805	Downloads	Buy
CFN-A	CFN1206A	Chip	Metal Foil	0.005 to 0.04 Ω	1 % / 5 %	±50 ppm / ±100 ppm	1 W	CFN1206	Downloads	Buy
CRF	CRF0805	Chip	Metal Strip	0.001 to 0.025 Ω	1 %, 5 %	±50 ppm	0.5 W	CRF0805	Downloads	Buy

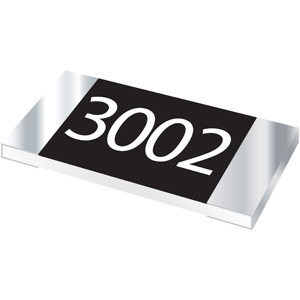

CRF	CRF1206	Chip	Metal Strip	0.001 to 0.050 Ω	1 %, 5 %	±50 ppm	1 W	CRF1206	Downloads	Buy
CRF	CRF2512	Chip	Metal Strip	0.001 to 0.050 Ω	1 %, 5 %	±50 ppm	0.001 to 0.010 Ω: 2 W / 0.011 to 0.050 Ω: 1 W	CRF2512 Series NiCu	Downloads	Buy

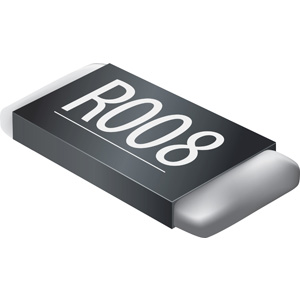

CRE	CRE2512	Chip	Metal Strip	0.001 to 0.009 Ω	1 %	±50 ppm	2 W / 3 W	CRE2512		Buy

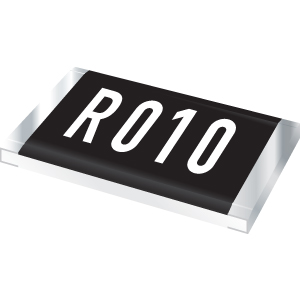

CRA	CRA2512	Chip	Metal Strip	0.01 to 0.100 Ω	1 %, 5 %	±50 ppm	3 W	CRA2512	Downloads	Buy
CRG	CRG2512	Chip	Metal Strip	0.11 to 0.68 Ω	1 %/5 %	±50 ppm	1 W, 2 W	CRG2512	Downloads	Buy
CST	CST0612	4-Terminal Chip	Metal Strip	0.5 to 5 mΩ	1 %	±100 ppm/±200 ppm	1 W	CST0612	Downloads	Buy

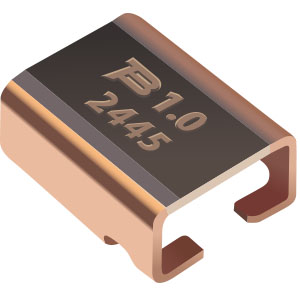

CSS	CSS2H-2512	Surface Mount	Metal Element	0.3 to 5 mΩ	1 %, 5 %	±50 ppm	1.5 to 6 W	CSS2H-2512R CSS2H-2512K	Downloads	Buy
CSS	CSS2H-3920	Surface Mount	Metal Element	0.2 to 5 mΩ	1 %, 5 %	±50 ppm	2 to 12 W	CSS2H-3920R CSS2H-3920K	Downloads	Buy
CSS	CSS2H-5930	Surface Mount	Metal Element	0.2 to 3 mΩ	1 %, 5 %	±50 ppm	4 to 10 W	CSS2H-5930R CSS2H-5930K	Downloads	Buy
CSS	CSS4J-4026	Surface Mount	Metal Element	0.2 to 3 mΩ	1 %, 5 %	±50 ppm	3 to 5 W	CSS4J-4026R CSS4J-4026K	Downloads	Buy
CSM2F	CSM2F-6918-0	Surface Mount / Clearance Hole/ Bare Copper	Metal Element	50 to 200 μΩ	5 %	±50 ppm	36 W	CSM2F-6918-L050J00 CSM2F-6918-L100J00 CSM2F-6918-L200J00	Downloads	Buy
CSM2F	CSM2F-6918-1	Surface Mount / Clearance Hole/ Pre-Plate	Metal Element	50 to 200 μΩ	5 %	±50 ppm	36 W	CSM2F-6918-L050J01	Downloads	Buy
CSM2F	CSM2F-6918-2	Surface Mount / Clearance Hole/ Post Plated	Metal Element	50 to 200 μΩ	5 %	±50 ppm	36 W	CSM2F-6918-L050J02 CSM2F-6918-L100J02 CSM2F-6918-L200J02	Downloads	Buy
CSM2F-6918 with 2 or 3 sensing pins	CSM2F-6918-x0	Through-hole/ Clearance Hole/ Bare Copper	Metal Element	50 to 200 μΩ	5 %	±50 ppm	36 W	CSM2F-6918-L050Jx0 CSM2F-6918-L200Jx0 CSM2F-6918-L100Jx0	Downloads	Buy
CSM2F-6918 with 2 or 3 sensing pins	CSM2F-6918-x1	Through-hole/ Clearance Hole/ Pre-Plate	Metal Element	50 to 200 μΩ	5 %	±50 ppm	36 W	CSM2F-6918-L050Jx1	Downloads	Buy
CSM2F-6918 with 2 or 3 sensing pins	CSM2F-6918-x2	Through-hole/ Clearance Hole/ Post Plated	Metal Element	50 to 200 μΩ	5 %	±50 ppm	36 W	CSM2F-6918-L050Jx2 CSM2F-6918-L100Jx2 CSM2F-6918-L200Jx2	Downloads	Buy
CSM2F	CSM2F-7036-0	Surface Mount / Clearance Hole/ Bare Copper	Metal Element	25 to 100 μΩ	5 %	±50 ppm	50 W	CSM2F-7036-L025J00 CSM2F-7036-L050J00 CSM2F-7036-L100J00	Downloads	Buy
CSM2F	CSM2F-7036-1	Surface Mount / Clearance Hole/ Pre-Plate	Metal Element	25 to 100 μΩ	5 %	±50 ppm	50 W	CSM2F-7036-L050J01	Downloads	Buy
CSM2F	CSM2F-7036-2	Surface Mount / Clearance Hole/ Post Plated	Metal Element	25 to 100 μΩ	5 %	±50 ppm	50 W	CSM2F-7036-L025J02 CSM2F-7036-L050J02 CSM2F-7036-L100J02	Downloads	Buy
CSM2F-7036 with 2 or 3 sensing pins	CSM2F-7036-x0	Through-hole/ Clearance Hole/ Bare Copper	Metal Element	25 to 100 μΩ	5 %	±50 ppm	50 W	CSM2F-7036-L050Jx0 CSM2F-7036-L025Jx0 CSM2F-7036-L100Jx0	Downloads	Buy
CSM2F-7036 with 2 or 3 sensing pins	CSM2F-7036-x1	Through Hole / Clearance Hole/ Pre-Plate	Metal Element	25 to 100 μΩ	5 %	±50 ppm	50 W	CSM2F-7036-L050Jx1	Downloads	Buy
CSM2F-7036 with 2 or 3 sensing pins	CSM2F-7036-x2	Through-hole/ Clearance Hole/ Post Plated	Metal Element	25 to 100 μΩ	5 %	±50 ppm	50 W	CSM2F-7036-L050Jx2 CSM2F-7036-L025Jx2 CSM2F-7036-L100Jx2	Downloads	Buy
CSM2F	CSM2F-8518-0	Surface Mount / Clearance Hole/ Bare Copper	Metal Element	50 to 200 μΩ	5 %	±50 ppm	36 W	CSM2F-8518-L050J00 CSM2F-8518-L100J00 CSM2F-8518-L200J00	Downloads	Buy
CSM2F	CSM2F-8518-1	Surface Mount / Clearance Hole/ Pre-Plate	Metal Element	50 to 200 μΩ	5 %	±50 ppm	36 W	CSM2F-8518-L050J01 CSM2F-8518-L100J01	Downloads	Buy
CSM2F	CSM2F-8518-2	Surface Mount / Clearance Hole/ Post Plated	Metal Element	50 to 200 μΩ	5 %	±50 ppm	36 W	CSM2F-8518-L050J02 CSM2F-8518-L100J02 CSM2F-8518-L200J02	Downloads	Buy
CSM2F-8518 with 2 or 3 sensing pins	CSM2F-8518-x0	Through-hole/ Clearance Hole/ Bare Copper	Metal Element	50 to 200 μΩ	5 %	±50 ppm	36 W	CSM2F-8518-L050Jx0 CSM2F-8518-L100Jx0 CSM2F-8518-L200Jx0	Downloads	Buy
CSM2F-8518 with 2 or 3 sensing pins	CSM2F-8518-x1	Through-hole/ Clearance Hole/ Pre-Plate	Metal Element	50 to 200 μΩ	5 %	±50 ppm	36 W	CSM2F-8518-L050Jx1	Downloads	Buy
CSM2F-8518 with 2 or 3 sensing pins	CSM2F-8518-x2	Through-hole/ Clearance Hole/ Post Plated	Metal Element	50 to 200 μΩ	5 %	±50 ppm	36 W	CSM2F-8518-L050Jx2 CSM2F-8518-L100Jx2 CSM2F-8518-L200Jx2	Downloads	Buy
CSM2F	CSM2F-8536-0	Surface Mount / Clearance Hole/ Bare Copper	Metal Element	25 to 100 μΩ	5 %	±50 ppm	50 W	CSM2F-8536-L025J00 CSM2F-8536-L050J00 CSM2F-8536-L100J00	Downloads	Buy
CSM2F	CSM2F-8536-1	Surface Mount / Clearance Hole/ Pre-Plate	Metal Element	25 to 100 μΩ	5 %	±50 ppm	50 W	CSM2F-8536-L025J01 CSM2F-8536-L050J01	Downloads	Buy
CSM2F	CSM2F-8536-2	Surface Mount / Clearance Hole/ Post Plated	Metal Element	25 to 100 μΩ	5 %	±50 ppm	50 W	CSM2F-8536-L025J02 CSM2F-8536-L050J02 CSM2F-8536-L100J02	Downloads	Buy
CSM2F-8536 with 2 or 3 sensing pins	CSM2F-8536-x0	Through-hole/ Clearance Hole/ Bare Copper	Metal Element	25 to 100 μΩ	5 %	±50 ppm	50 W	CSM2F-8536-L050Jx0 CSM2F-8536-L100Jx0 CSM2F-8536-L025Jx0	Downloads	Buy
CSM2F-8536 with 2 or 3 sensing pins	CSM2F-8536-x1	Through-hole/ Clearance Hole/ Pre-Plate	Metal Element	25 to 100 μΩ	5 %	±50 ppm	50 W	CSM2F-8536-L025Jx1 CSM2F-8536-L050Jx1	Downloads	Buy
CSM2F-8536 with 2 or 3 sensing pins	CSM2F-8536-x2	Through-hole/ Clearance Hole/ Post Plated	Metal Element	25 to 100 μΩ	5 %	±50 ppm	50 W	CSM2F-8536-L025Jx2 CSM2F-8536-L050Jx2 CSM2F-8536-L100Jx2	Downloads	Buy
PWR	PWR163	Surface Mount DPAK	Thick Film	0.02-130K Ω	1 %, 5 %	±100 ppm ±200 ppm ±600 ppm	25	PWR163	Downloads	Buy
PWR	PWR263S-20	Surface Mount D²PAK	Thick Film	0.02-130K Ω	1 %, 5 %	±100 ppm ±200 ppm ±600 ppm	20 W	PWR263S-20	Downloads	Buy
PWR	PWR263S-35	Surface Mount D²PAK	Thick Film	0.02 to 130K Ω	1 %, 5 %	±100 ppm ±200 ppm ±600 ppm	35 W	PWR263S-35	Downloads	Buy
PWR	PWR220T-20	Through-hole TO-220	Thick Film	0.5 to 130K Ω	1 %, 5 %	±100 ppm ±200 ppm ±600 ppm	20 W	PWR220T-20	Downloads	Buy
PWR	PWR220T-35	Through-hole TO-220	Thick Film	0.02 to 130K Ω	1 %, 5 %	±100 ppm ±200 ppm ±600 ppm	35 W	PWR220T-35	Downloads	Buy
PWR	PWR221T-30	Through-hole TO-220	Thick Film	0.02 to 130K Ω	1 %, 5 %	±100 ppm ±200 ppm ±600 ppm	30	PWR221T-30	Downloads	Buy
