The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components. Today, designers of compact electronic systems are faced with board space constraints, thus driving the requirement for alternative packaging technologies. Functional integration and miniaturization is the key to success!

To aid this miniaturization campaign, a new generation of Chip Diodes from Bourns has emerged that offers the capability to provide a silicon diode with minimal packaging overhead. The small signal 0603, 1005 and 1206 Chip Diodes are lead free with Cu/Ni/Au plated terminations while the other packages (SMA, SMB, SMC, 1408, 1607, 2010, 2419, 8L NSOIC, 16L NSOIC, SOT23, SOT23-6, 16L WSOIC) use 100 % Tin terminations. All Bourns® diodes are compatible with lead free manufacturing processes, conforming to many industry and government regulations on lead free components.

Bourns® Chip Diodes conform to JEDEC standards, are easy to handle on standard pick and place equipment and their flat configuration minimizes rollaway.

Advantages
The Chip Diode product range provides distinct advantages over some of our competitors, such as:
  • Package Size: The Chip Diodes 0603, 1005, 1206, 1408, 2010 are leadless, allowing designers to make real estate savings on PCB layouts.
  • Environmental: All Bourns® diodes are RoHS compliant and units meet many worldwide industry and government regulations on lead free components.
  • Manufacturing Friendly: Chip Diodes allow the use of industry standard pick & place equipment. The Chip Diode package makes it easy to handle and the flat configuration minimizes rollaway in production operations.

Conflict Mineral Source Reporting for Diodes: CFSI_CMRT4-01

Design Notes
RS-485 Port Protection Evaluation Board 1
RS-485 Port Protection Evaluation Board 2

Quick link to the Sample Request: Request Sample
Series Data Sheet Photo Type Working Peak Reverse Voltage Symbol: VRMM / unit: V Minimum Breakdown Voltage @ IT (mA) Symbol: VBR / unit: V Typical Capacitance @ 0 V 1 MHZ Symbol:: CT / unit: PF RoHS Compliant Design Files Buy Now
1.5SMC Series 1.5SMC Series 0214_part_photo 5.8-495 6.8-550 1.5SMC Series Available Downloads Buy
5.0SMDJ Series 5.0SMDJ Series 5-0SMDJ_part Transient Voltage Suppressor Diodes 12-170 13.3-209 1 5.0SMDJ Series Available Downloads Buy
P4SMA Series P4SMA Series 0214_part_photo Transient Voltage Suppressor Diodes 5.8-495 6.8-550 P4SMA Series Available Downloads Buy
P6SMB Series P6SMB Series 0214_part_photo 5.8~495 6.8-550 P6SMB Series Available Downloads Buy
SMAJ Series SMAJ Series 0214_part_photo Transient Voltage Suppressor Diodes 5-495 6.4-522 SMAJ Series Available Downloads Buy
SMBJ Series SMBJ Series 0214_part_photo Transient Voltage Suppressor Diodes 5-495 6.4-522 SMBJ Series Available Downloads Buy
SMCJ Series SMCJ Series 0214_part_photo Transient Voltage Suppressor Diodes 5-495 6.4-522 SMCJ Series Available Downloads Buy
SMLJ Series SMLJ Series 0214_part_photo Transient Voltage Suppressor Diodes 5-170 6.4-189 SMLJ Series Available Downloads Buy
CDDFN2-T3.3B CDDFN2-T3.3B CDDFN2-T3.3B_part ESD Suppressor Diodes 3.3 4 V @ 1 mA 13.5 CDDFN2-T3.3B Buy
CDDFN2-T5.0LC CDDFN2-T5.0LC CDDFN2-T4.7C_mpart Transient Voltage Suppressor Diodes 5.0 7.0 0.50 CDDFN2-T5.0LC Available Downloads Buy
CDSOD323-TxxC Series CDSOD323-TxxC Series cdsod323_t05c_part Transient Voltage Suppressor Diodes 3.3-24 4.0-26.7 3 CDSOD323-TxxC Series Available Downloads Buy
CDSOD323-TxxC-DSL Series CDSOD323-TxxC-DSL Series cdsod323_t05c_part Transient Voltage Suppressor Diodes 12-24 13.3-26.7 3 CDSOD323-TxxC-DSL Series Available Downloads Buy

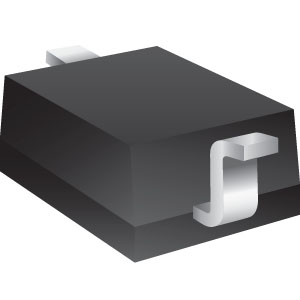

CDSOD323-TxxLC Series CDSOD323-TxxLC Series CDSOD323-TxxLC_part Transient Voltage Suppressor Diodes 5.0-24 6.0-26.7 1.0 CDSOD323-TxxLC Series Available Downloads Buy
CDSOD323-TxxSC Series CDSOD323-TxxSC Series CDSOD323-TxxSC_part Transient Voltage Suppressor Diodes 3.3-36 4.0-40 40 ~ 500 CDSOD323-TxxSC Series Available Downloads Buy
CD0201-T20C CD0201-T20C CD0201-T20C_part Transient Voltage Suppressor Diodes 20 22.8 10 CD0201-T20C Available Downloads Buy
CD0603-TxxC Series CD0603-TxxC Series cd0603_1005-t_part_nr Transient Voltage Suppressor Diodes 5.0-24 6.0-25 12 CD0603-TxxC Series Available Downloads Buy
CD1005-TxxC Series CD1005-TxxC Series cd0603_1005-t_part_nr Transient Voltage Suppressor Diodes 5.0-24 6.0-25 12 CD1005-TxxC Series Available Downloads Buy
CD214A-T Series CD214A-T Series CD214A_part_NR Transient Voltage Suppressor Diodes 5-170 6.4-189 CD214A-T Series Available Downloads Buy
CD214B-T Series CD214B-T Series CD214A_part_NR Transient Voltage Suppressor Diodes 5-170 6.4-189 CD214B-T Series Buy
CD214C-T Series CD214C-T Series CD214A_part_NR Transient Voltage Suppressor Diodes 5-170 6.4-189 CD214C-T Series Buy
CD214L-T Series CD214L-T Series CD214A_part_NR Transient Voltage Suppressor Diodes 5-170 6.4-208.90 CD214L-T Series Available Downloads Buy
CDDFN2-T4.7C Series CDDFN2-T4.7C Series cddfn2-t4-7c_part_nr Transient Voltage Suppressor Diodes 5.0 5.1 15 CDDFN2-T4.7C Series Available Downloads Buy
CDDFN2-TxxC CDDFN2-TxxC cddfn2-txxc_part_nr Transient Voltage Suppressor Diodes 5, 12, 24 6, 13, 25 12 CDDFN2-TxxC Available Downloads Buy
